Lightweight High Temperature High Speed Slip Ring 38.1mm Bore 12 Circuits 5A

Max 5000RPM High Speed Slip Ring With Bore Size 38.1mm 12 Circuits 5A

Description of G038 High Speed slip ring

SenRing G038-12 series high-speed slip ring has a maximum speed of 5000 rpm and belongs to the hollow shaft high-speed slip ring. The G038-12 series high-speed collector ring has a through-hole diameter of 38.1mm and an outer diameter of 99mm. It has a compact structure, light weight, high protection level, and uses special high-temperature alloys and composite materials to ensure that the slip ring can rotate at high speeds for a long time without the need for cooling. It is mainly used in devices such as laboratories and various testing equipment that require high-speed signal transmission through conductive and data/control signal transmission.

Features of G038 High Speed slip ring

1. Max speed 5000RPM;

2. Stablely transmit 12 circuit 5A signal or power;

3. Hole size 38.1mm,OD 99mm;

4. Adopt high temperature alloys and composites materials,no need cooling;

5. Integrated structure, easy installation,high concentricity;

Application

 lab and any testing equipments need to transmit signal in high speed rotating

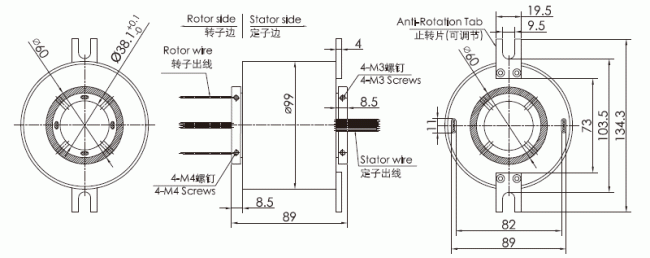

Drawing of G038 High Speed slip ring

Optional

1. Circuit number & Current
2. Working speed & temperature
3. Protection grade & materials
4. Combined signal type
