ISO9001 500V Super rotating High Frequency Slip Ring For Aero Engine Speed Test

Super High Speed Slip Ring Max Speed 12000RPM For Aero-Engine Speed Test

Description of G000 High Speed slip ring

SenRing G000 series high-speed electric slip ring has a maximum speed of 12,000 rpm and is an ultra-high-speed conductive slip ring. It is the fastest 360-degree rotating slip ring product in the high-speed slip ring family. The G000 series high-speed conductive slip ring has a compact structure, light weight, high protection level, and uses high-temperature alloys and composite materials used in aviation engines to ensure that the slip ring can rotate at high speeds for a long time without the need for cooling. It is mainly used in high-speed precision equipment such as aviation engine speed testing, automobile half-axle and transmission shaft torque testing systems for conductive and data/control signal transmission.

Features of G000 High Speed slip ring

1. Max speed 12000RPM;

2. Stablely transmit 2~16 circuit (0.1~1A) signal or power;

3. solid without hole, stator OD31.2mm,as drawing;

4. Adopt high temperature alloys and composites materials,no need cooling;

5. Integrated structure, easy installation,high concentricity;

Typical application:

aero-engine speed test, automobile drive shaft torque test

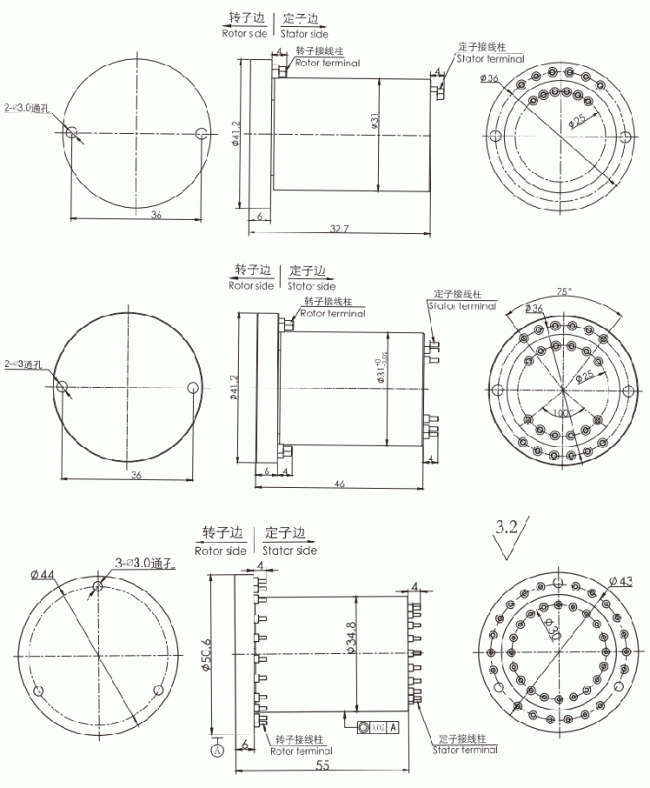

Drawing of G000 High Speed slip ring
