5000RPM Hollow Shaft High Speed Slip Ring Terminal hole 12.7mm OD 56mm

5000RPM Light Weight Hollow Shaft High Speed Slip Ring With Hole Size 12.7mm OD 56mm

Description of G012-12 High Speed slip ring

SENRING G012-12 series High Speed,a kind of Hollow Shaft slip ring.With hole size 12.7mm,OD 56mm,integrated structure, light weight,high IP grade.Adopt the same materials for aero-engines (such as high temperature alloys and composites material)

Features of G012-12 High Speed slip ring

1. Max speed 5000RPM;

2. Hole size 12.7mm,OD 56mm;

3. Stablely transmit 12 circuit 5A signal or power;

4. Adopt high temperature alloys and composites materials,no need cooling;

5. Integrated structure, easy installation,high concentricity;

6. Typical application: lab and any testing equipments need to transmit signal in high speed rotating;

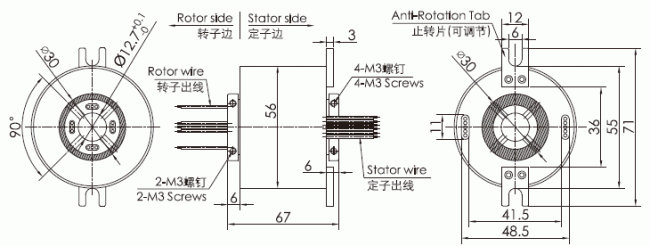

Drawing of G012-12 High Speed slip ring

Slip ring work at very high speed with the specified life span and without signal losing is always a challenge for slip ring designer & manufacturer, our RD team accumulate their 20 years experience in high speed slip ring researching, and they find good solutions on it such as contactless, adopt special contacting material , use special bearing or change the traditional configuration ,etc, the solutions proved to be very successfully and our high speed slip ring are widely used in military and industry.
