6mm Light Pancake PCB Electrical Slip Rings With High Rotating Speed

Light 6mm Thickness Pancake Slip Rings With High Rotating Speed And Stable Contact

Description of P012 PCB Pancake Slip Ring

P012 series PCB slip ring has an inner diameter of 12.7mm and a thickness of 6mm. It is a conductive slip ring that is thinner than SenRing K series pancake slip ring. SenRing innovatively uses PCB substrate, ultra-hard gold plating treatment, and ultra-thick copper foil technology to support the mixed transmission of current and signal. It has the characteristics of high stability, low torque, low loss, maintenance-free, low electrical noise, and ultra-long lifespan.

Features of P012 PCB Pancake Slip Ring

1. Hole size:12.7,thickness:6mm;

2. Adopting fiber brush technology make sure reliable contact under very low friction ;

3. Low contact resistance, no friction debris;

4. Can transmit precision signal and supply power when 360° rotaring;

5. Precious metal brush ensure high stability and reliability.

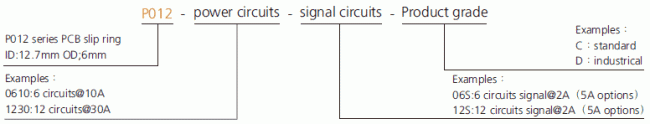

Part no. description

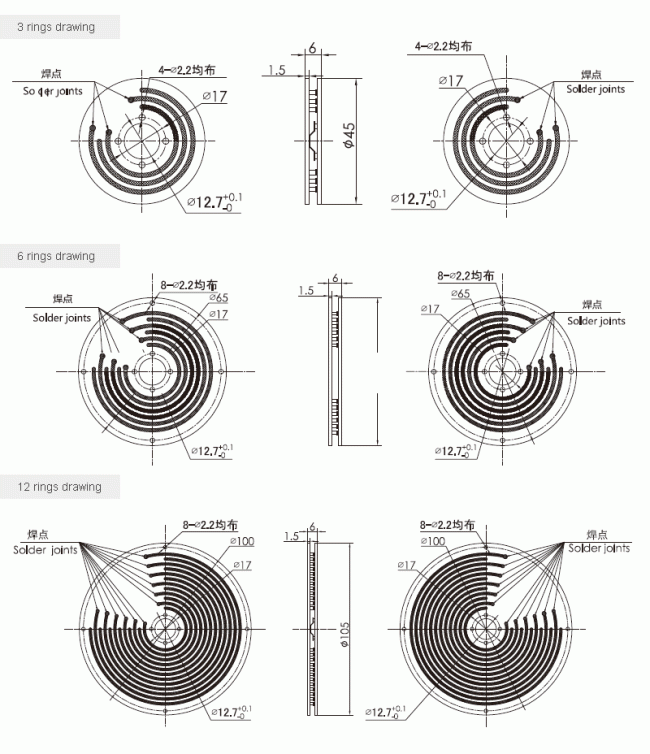

Drawing of P012 PCB Pancake Slip Ring

Standard model list

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,

P012 PCB Pancake Slip Ring Grade Table
