Custom Through Hole PCB Pancake Slip Ring Connector High Rotating Speed
Custom Through Hole Size Pcb Pancake Slip Ring High Rotating Speed Stable Contact
Description of P050 PCB Pancake Slip Ring
P050 series PCB slip ring,hole size 50mm,thickness 6mm(min thickness 5mm).P038 series innovative PCB material,adopt ultra-hard gold plating and ultra-thick copper foil process,support 2~12 circuits power and signal combined transmission
Features of P050 PCB Pancake Slip Ring
1. This slip ring has an inner diameter of 50mm and a thickness of 6mm.
2. It supports 0 to 12 channels of current/signal transmission.
3. The slip ring uses fiber brush technology, ensuring reliable contact with extremely low friction force.
4. The contact resistance is extremely low, and there is no friction debris.
5. It can be used for mixed transmission of precision signals and power.
6. The contact points of the brush are made of precious metals, which have high stability and reliability.
Alternatives
- Outter diameter
- Circuits
- Loading of each circuit
- Wire length
- Different signal compatible
- Working speed
| Mechanical Data | |
| spec | data |
| working life(Reference) | refer to slip ring grade table |
| Rotating speed | refer to slip ring grade table |
| working temp. | -30℃∼80℃ |
| work humidity | 0∼85% RH |
| contact material | refer to slip ring grade table |
| housing material | aluminum alloy |
| IP grade | IP51 |
| Electrical Data | ||
| spec | data | |
| power | signal | |
| voltage range | 0∼440VAC/VDC | 0∼240VAC/VDC |
| insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| lead wire spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard 300mm (can be customized) |
|
| Dielectric Strength | 500VAC@50Hz,60s | |
| Electrical noise | < 0.01Ω | |
| torque | 0.1N.m;+0.03N.m/6 circuits | |

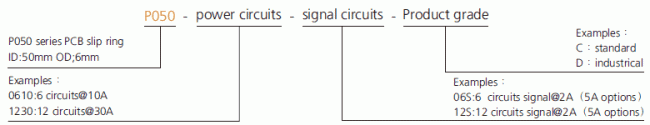

Part no. description

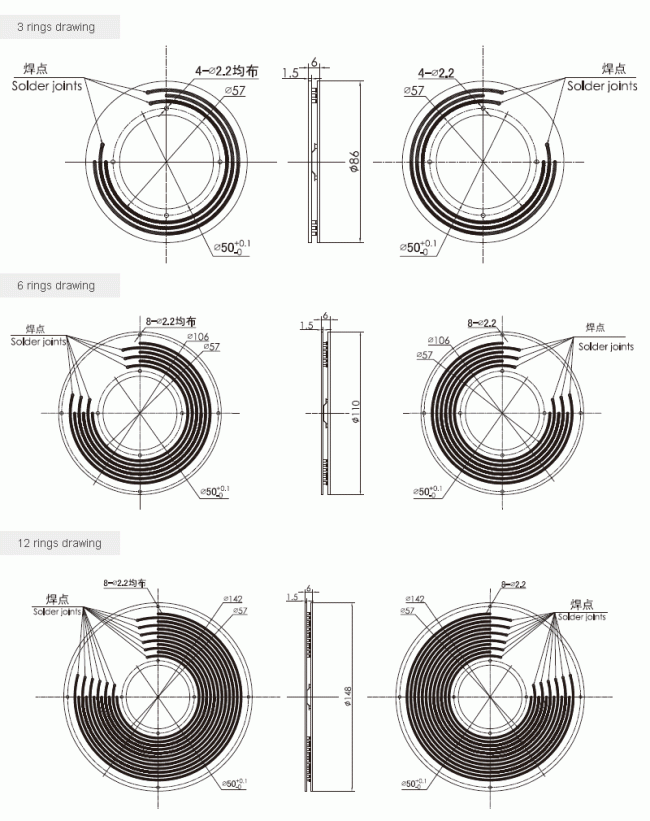

Drawing of P050 PCB Pancake Slip Ring
Standard model list
| Model | 10A | signal/5A | Rings |
| P050-0310 | 3 | 0 | 3 |
| P050-0210-04S | 2 | 4 | 6 |
| P050-06S | 0 | 6 | 6 |
| P050-1210 | 12 | 0 | 12 |
| P050-0410-08S | 4 | 8 | 12 |
| P050-0810-04S | 8 | 4 | 12 |
| P050-03S | 0 | 3 | 3 |
| P050-0410-02S | 4 | 2 | 6 |
| P050-0610 | 6 | 0 | 6 |
| P050-0210-10S | 2 | 10 | 12 |
| P050-0610-06S | 6 | 6 | 12 |
| P050-12S | 0 | 1 | 12 |
*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring
P050 PCB Pancake Slip Ring Grade Table
| Grade code | Max rotating speed | working life | contact material |
| C:standard | 100RPM | 5 millions revolutions | precious metal |
| D:industrical | 300RPM | 20 millions revolutions |
gold-gold
|
