Description of H2056f Through Bore Slip Ring
The H2056F series is a miniature hollow conductive ring with a center aperture of 20mm (suitable for any rotating device with a hole diameter ≤20mm) and an outer diameter of 56mm. It can stably transmit 2 to 8 channels of 0~2A current or signal and can be used in any device that requires 360-degree rotation and conductive or transmission of various signals.
Features of H2056f Through Bore Slip Ring
1. Advanced multi-point contact brush technology ensures reliable contact with low friction;
2. Standard model supports 2~24 circuits power@10A or 2~48 circuits signal@2A,current and channels can be customized;
3. Can be customized to combine power/signal transmitting
4. Support transmitting power with signals ;
5. Integrated structure design, easy installation.
| Mechanical parameters | |
| Working Life | refer to slip ring grade table |
| Rotating speed | refer to slip ring grade table |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | refer to slip ring grade table |
| Housing Material | AL alloy |
| Torque | 0.05N.m+0.02N.m/6 wire |
| IP Grade | IP51 |
| Electrical parameters | ||
| Spec. | Power | Signal |
| Voltage Range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insolution Resistance | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| Lead wire Spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard length 300mm(can be customized) | |
| Dielectric Strength | 800VAC@50Hz,60s | |
| Electrical Noise | < 0.01Ω | |

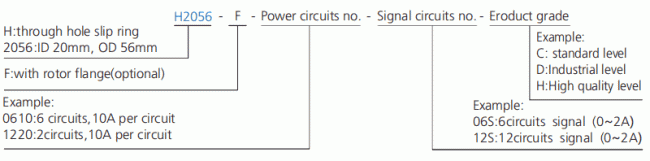

| model | circuits | Length L(mm) | model | circuits | Length L(mm) | ||
| 10A | signal or 0-5A | 10A | signal or 0-5A | ||||
| H2056F-02S | 0 | 2 | 34 | H2056F-1010-08S | 10 | 8 | 68.5 |
| H2056F-0210 | 2 | 0 | 34 | H2056F-1210 | 12 | 0 | 68.5 |
| H2056F-03S | 0 | 3 | 34 | H2056F-1410-04S | 14 | 4 | 68.5 |
| H2056F-0310 | 3 | 0 | 34 | H2056F-1610-02S | 16 | 2 | 68.5 |
| H2056F-06S | 0 | 6 | 34 | H2056F-24S | 0 | 24 | 85.5 |
| H2056F-0210-04S | 2 | 4 | 34 | H2056F-0410-20S | 4 | 20 | 85.5 |
| H2056F-0410-02S | 4 | 2 | 34 | H2056F-0610-18S | 6 | 18 | 85.5 |
| H2056F-0610 | 6 | 0 | 34 | H2056F-1210-12S | 12 | 12 | 85.5 |
| H2056F-12S | 0 | 12 | 52 | H2056F-1810-06S | 18 | 6 | 85.5 |
| H2056F-0210-10S | 2 | 10 | 52 | H2056F-2410 | 24 | 0 | 85.5 |
| H2056F-0310-09S | 3 | 9 | 52 | H2056F-30S | 0 | 30 | 101 |
| H2056F-0610-06S | 6 | 6 | 52 | H2056F-0210-28S | 2 | 28 | 101 |
| H2056F-0810-04S | 8 | 4 | 52 | H2056F-0410-26S | 4 | 26 | 101 |
| H2056F-1010-02S | 10 | 2 | 52 | H2056F-0610-24S | 6 | 24 | 101 |
| H2056F-1210 | 12 | 0 | 52 | H2056F-36S | 0 | 36 | 119 |
| H2056F-18S | 0 | 18 | 68.5 | H2056F-0410-32S | 4 | 32 | 119 |
| H2056F-0210-16S | 2 | 16 | 68.5 | H2056F-0610-30S | 6 | 30 | 119 |
| H2056F-0410-14S | 4 | 14 | 68.4 | H2056F-42S | 0 | 42 | 137 |
| H2056F-0610-12S | 6 | 12 | 68.5 | H2056F-0410-38S | 4 | 38 | 137 |
| H2056F-0810-10S | 8 | 10 | 68.5 | H2056F-48S | 0 | 48 | 153 |
* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.
H2056f Grade Table
| Grade code | Max rotating speed | Working Life | Contact Material |
| C(Standard) | 250RPM | 20 millions revolutions | precious metal |
| D(Industrical) | 600RPM | 80 millions revolutions | precious metal |
| H(High Quality) | 1000RPM | 150 millions revolutions | gold alloy |
