Description of High Current Capsule Slip Ring
The Senring Pro M300 is a high-current and signal slip ring with a compact structure, specially designed and developed for the consumer electronics, small wind turbine, and stage lighting industries. Its core technology adopts gold-gold contact points, ensuring stability and durability. The rotatable and stationary wire connections are color-coded for easy installation. The conductive ring features a 90-degree V-groove design, providing more contact area, smoother rotation, and lower torque and dynamic resistance.
Features of High Current Capsule Slip Ring
1. This slip ring has a small size but can handle high currents.
2. The main body has an outer diameter of 30mm and can support 2-6 channels with a current capacity of 30-50A.
3. The torque is very small, less than 0.06N.m.
4. It is suitable for use in devices such as induction cookers and dining tables that require high current and a small slip ring size. 5. This is a standardized product that is readily available in stock. Installation is easy with an A-type flange mount.

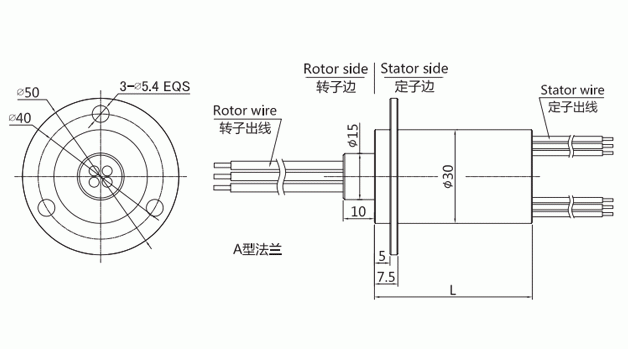

- Part no. description

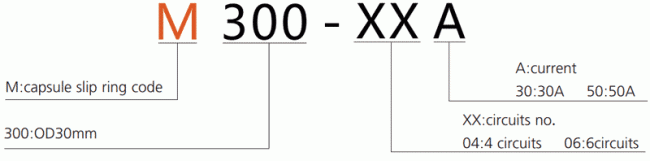

| Part No. | Circuits NO. | Max current/circuit | Lead wire spec. | Length L(mm) |
| M300-0430 | 4 | 30A | Silver-plated teflon AWG12# | 50 |
| M300-0250 | 2 | 50A | Silver-plated teflon AWG12#*2 | 50 |
| M300-0630 | 6 | 30A | Silver-plated teflon AWG12# | 65.7 |
| M300-1210 | 12 | 10A | Silver-plated teflon AWG17# | 74 |
| M300-2405 | 24 | 5A | Silver-plated teflon AWG22# |
74 |
Technical Specification of M300 series slip ring
| Mechanicall parameters | |
| Working Life | 10millions for ref(depends on working conditions) |
| Rotating speed | 250RPM |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Materials | precious metal:gold-gold |
| Housing Material | stainless steel |
| Torque | 0.05N.m+0.01N.m/6 wire |
| IP Grade | IP51 |
| Electrical parameters | ||
| Spec. | Power | Signal |
| Voltage Range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insulation Resistance | ≥300MΩ/300VDC | ≥300MΩ/300VDC |
| Lead wire Spec. | AWG12# Silver-plated teflon | AWG12# Silver-plated teflon |
| Lead wire length | standard length 200mm (can be customized) |
|
| Dielectric Strength | 300VAC@50Hz,60s | |
| Electrical Noise | < 0.01Ω | |
