2A Rotating Capsule Slip Ring Electrical Connector Speed Free OEM

240 VAC 12 Circuits Capsule Slip Ring 2A 250 Rpm Rotating Speed Free Slip Ring Customization

Description of M220 Capsule Slip Ring

The SenRing M220 series slip ring has an outer diameter of 22mm and comes in various lengths, including 19mm, 26mm, 33mm, 40mm, and 57.3mm. It is available in multiple standard models, including 6, 8, 12, 18, 24, and 36 channels, with an option of 2-36 channels. The slip ring can be easily installed using A-type or U-type flange mounts.

This series is specifically designed and produced by SenRing Electronics for non-civilian fields such as consumer electronics, security industry, stage lighting industry, national defense, military, research institutes, and other similar applications. Its small size and compact structure make it an ideal choice for applications with limited space.

Features of M220 Capsule Slip Ring

1. Support transmitting power with signals;

2. Standard product, stocks available;

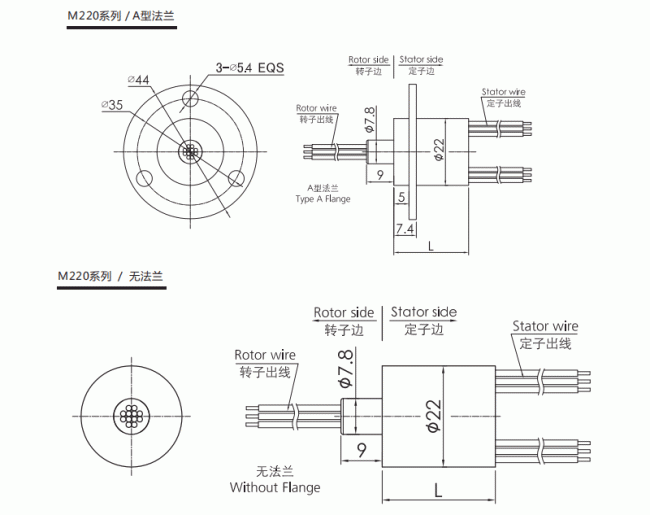

3. Without flange,A type flange option.

4. OD 22mm;

5. Low torque,less than 0.06N.m

6. 2~36 circuits(2A each),6~12circuits(5A each),2~4circuits(10A each),2~3circuits(30A each) optional;

Benefits:

· Smoother running.

· Higher design precision

· Lower electrical noise.

· Lower torque, lower contact resistance

· Rapid delivery

Technical Specification of M220 Capsule Slip Ring

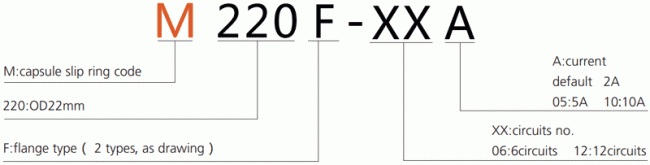

Part no. description

Color code of Lead Wire
