AN3 3AN Nylon Brake Hose Oil Resistance For Motorcycle Hydraulic Brake System

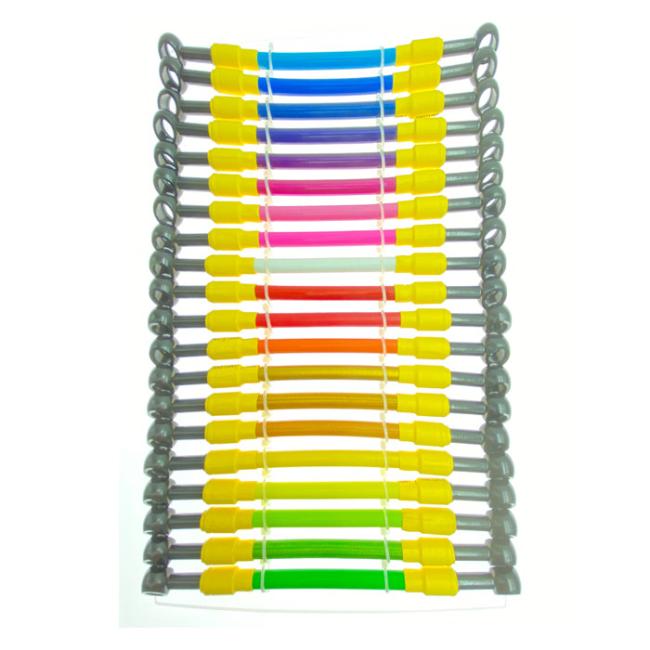

AN3 3AN 3.2*7.5mm SAE J1401 1/8'' Motorcycle Colored Stainless Steel Braided Nylon Brake Hose
Introduce:
Our Stainless Steel Braided Nylon Brake Hose Lines are made from high quality 304 grade stainless steel.With a nylon inner hose it means our stainless steel braided nylon brake hose lines are very resistant to expansion under pressure and will not degrade from exposure to brake fluid.Finally our stainless steel braidednylon brake hose lines are then covered in a abrasion resistant PVC/PU coating to protect the hose against chaffing .The stainless steel outer braid offers excellent resistance to heat,abrasion and mechanical damage and wll not absorb oil and fuel into its brading ,thus eliminating weight gain .
Construction:
- Tube: Black, oil resistant, synthetic rubber.
- Reinforcement: braided, high-tensile steel wire. 1/4”, 5/16”, 3/8” and 1/2” sizes are one braid;5/8”3/4”and 1” sizes are two braids.
- Cover:Black, oil, abrasion and weather resistant, thin synthetic rubber.
Application:
Used for hydraulic brake system .Special for Kart,ATV,Motorcycle, E-Richshaw,E-bike
Characteristic:
- Oil resistance
- Aging resistance
- Corrosion resistance
- Superior heat dissipation
- High and low temperature resistance
- Temperature: -40℃ (-140 ℉ )to +150℃ (+302 ℉ )
Construction:
| Inner Hose | Nylon Flexible Hose |
| Strength | 304 Stainless Steel Wire |
| Cover | PVC/PU,25 Colours |
Sepcification:
| Item Code | Inner Hose Material | Stainless Steel Type | I.D(mm) | O.D(mm) | W.P(PSI) | B.P(PSI) | Temp(℃) |
| SAEJ1401-3 | Modified Nylon | 201 | 3.2 | 7.5 | 4660 | 8000 | -40～80 |
| SAEJ1401-4 | Black Reycled Nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～80 |
| SAEJ1401-5 | White Recycled Nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～80 |
| SAEJ1401-6 | Virgin Nylon | 304 | 3.2 | 7.5 | 4660 | 14000 | -40～80 |
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
