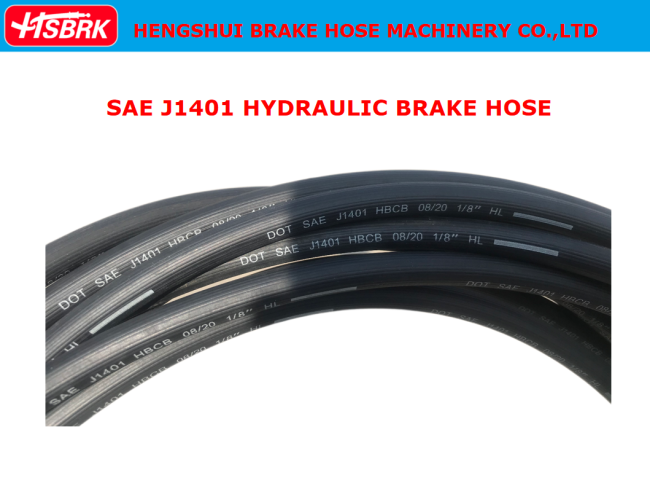

SAE J1401 Hydraulic Rubber EPDM Brake Hose 1/8" Protective Cover
SAE J1401 Hydraulic Rubber EPDM Brake Hose 1/8"
Introduce:

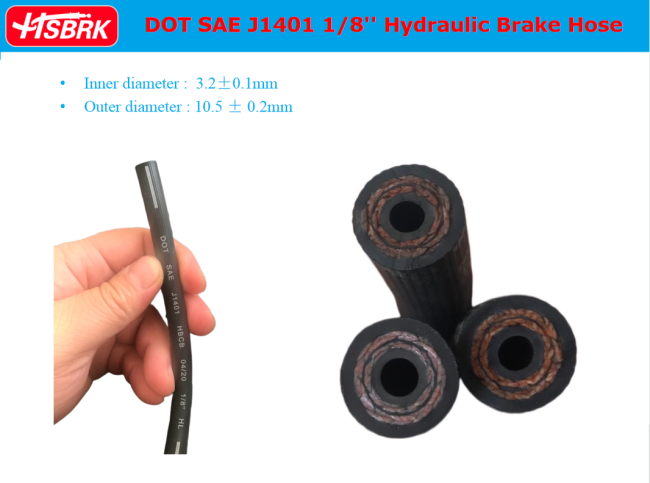

3.2*10.5mm Rubber EPDM Brake Hose consist of five layers :
- EPDM rubber inner hose
- Braided dipped Polyester Yarn
- EPDM rubber sheet
- Braided dipped Polyester Yarn
- Protective cover of EPDM rubber

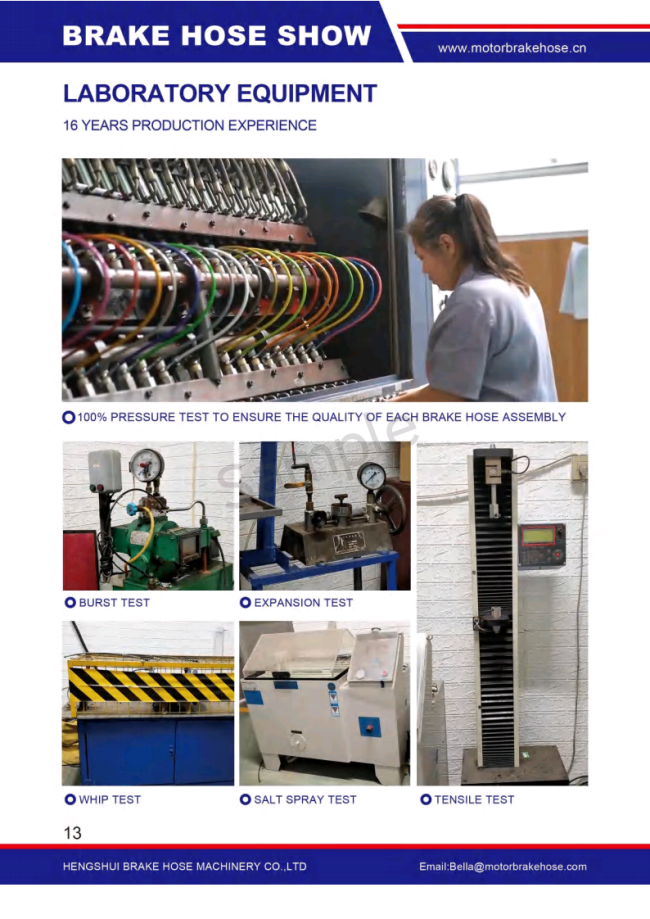

Our rubber EPDM brake hose conform to SAE J1401 and DOT standard FMVSS106.And each rubber EPDM brake hose have a water pressure test under 27Mpa 180 seconds which can gurantee our rubber EPDM brake hose is perfect quality before packing and shipping.
Rubber Brake Hose Features:
- Two braid PET reinforced hose
- Meets FMVSS-106 and SAE J1401 specifications
- Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )
- Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
- Temperature range -50°C to 121 °C
- Compatible with DOT3,DOT4 and DOT4+ brake fluides
Technical Specification:
|
Performance
|
Test Condition
|
International standard
|
Production standard
|
|
ID
|
Normal
|
3.2mm
|
3.15~3.45mm
|
|
OD
|
Normal
|
10.5mm
|
10.30~10.70mm
|
|
Expansion
|
1000psi
|
0.33cc/ft max.
|
0.14~0.16cc/ft
|
|
1500psi
|
0.42cc/ft max.
|
0.20~0.22cc/ft
|
|
|
2900psi
|
0.61cc/ft max.
|
0.41~0.43cc/ft
|
|
|
Burst
|
4000psi×2min;pressure rated 25,000±10,000psi/min |
>7000psi No seepage
|
>10,500psi
|
|
Whip
|
235~250psi
|
>35h
|
>70h
|
|
Tensile
|
tensile speed:218±3mm/min
|
>1446N
|
2400N
|
|
Cold Bend
|
-45°C ~-48°C× 72h, 3-5s,bending180°
|
No cracking
|
No cracking
|
|
Ozone
|
100pphm×70h×40°C, 7X
|
No cracking
|
No cracking
|
|
Impulse
|
146°C 1±0.1min at 1600psi+70
|
>7000psi No crack
|
>7500psi
|
|
Compatibility
|
120°C × 70h
|
>7000psi No seepage
|
>8800psi
|
|
Salt Spray
|
5%NaCl, 24h,water cleanout in 35°C
|
No red rust
|
No red rust
|
|
Water Aging
|
Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
|
>7000psi; >35h; >1446N
|
>10250psi;>60h; >2200N
|
Specification:
| NO. | Inner diameter | Outer diameter | Burst Pressure(Mpa) | Expansion Amount (ml/m) | Flexural fatigue test | Low temperature ℃ | Pulse Resistance 0-22Mpa | Ozone resistant 50±5pphm.40℃ | |
| 6.9Mpa | 10.3Mpa | ||||||||
| RBRH-A | 3.2±0.1mm | 10.5±0.2mm | ≥55 | ≤1.15 | ≥35h | -55 | 150times | 70±2h | |
| RBRH-B | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤0.54 | ≤0.69 | ≥35h | -40 | 150times | 70±2h |
| RBRH-C | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤1.08 | ≤1.38 | ≥35h | -40 | 150times | 70±2h |
Main application:
Used in the brake and clutch pipeline system of various passenger vehicles such as cars, commercial vehicles, SUVs and mini cars
Technical features: high temperature and pulse resistance, excellent flexing performance, stable and suitable expansion
Executive standard:
GB16897-2010 SAE J1401 DOT
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
