3AN SAE J1401 EPDM Brake Hose Ethylene Propylene Diene Monomer
New Custom EPDM 3AN SAE J1401 Car Brake Rubber Hose Hoses Pipe Fittings Assembly
Introduce:

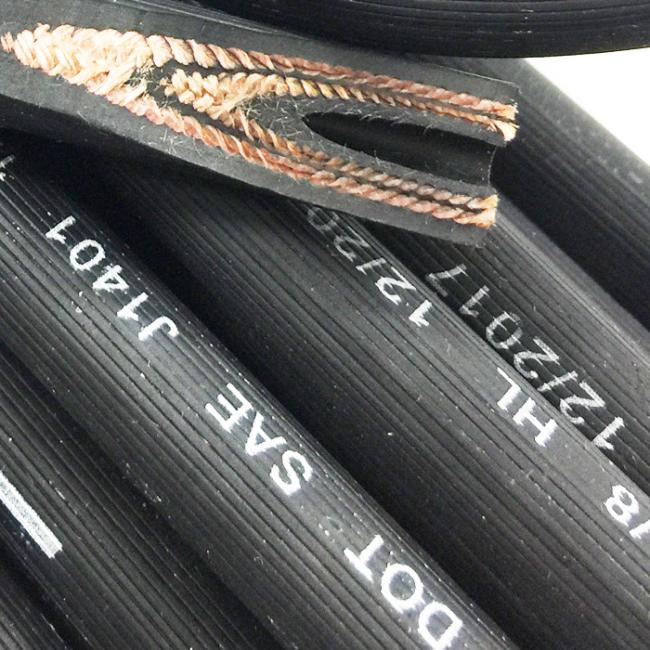

3.2*10.5mm Rubber EPDM Brake Hose consist of five layers :
- EPDM rubber inner hose
- Braided dipped Polyester Yarn
- EPDM rubber sheet
- Braided dipped Polyester Yarn
- Protective cover of EPDM rubber

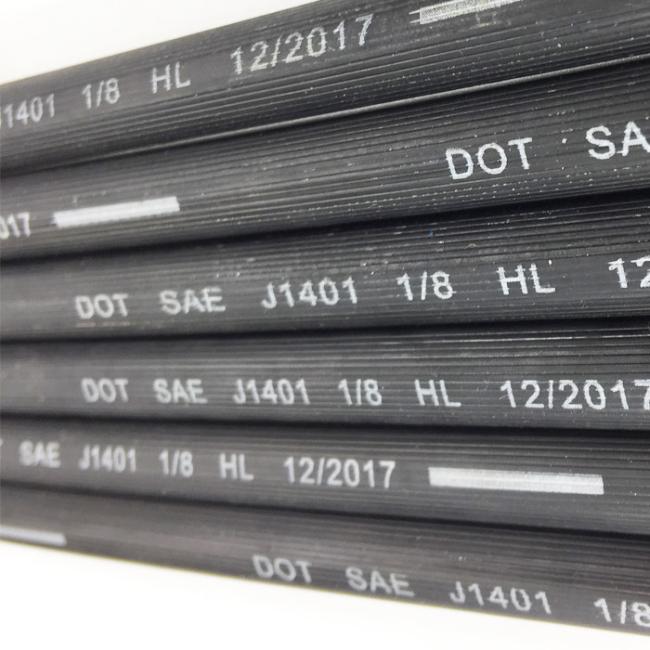

Our rubber EPDM brake hose conform to SAE J1401 and DOT standard FMVSS106.And each rubber EPDM brake hose have a water pressure test under 27Mpa 180 seconds which can gurantee our rubber EPDM brake hose is perfect quality before packing and shipping.
| Item | Rubber EPDM Brake Hose |
| Material | EPDM Rubber |
| Diameter | 1/8",3/16" |
| Function | transfer pressure in hydraulic system |
| Standard | SAE J1401 |
| Bursting pressure | ≥55MPa |
| Tensile strength | ≥1600N |
| Anti-flexure fatigue life | >35H |
| low expansion meets |
6.9MPa≦0.33cm3/m 10.3MPa≦0.42cm3/m |
Features:
- Excellent performance, reliable quality.
- Surface treatment of metal parts.
- No corrosion was found in the neutral salt spray test of white zinc plating for 48h.
- Electrogalvanizing nickel alloy neutral salt spray test has no corrosion over 1000h;
- Environmental surface treatment, in line with ROHS requirements.
- Implementation standard of Universal brake hose: SAE J1401.
- Hydraulic tube can be developed and customized according to the drawing and sample.
Specification:
| NO. | Inner diameter | Outer diameter | Burst Pressure(Mpa) | Expansion Amount (ml/m) | Flexural fatigue test | Low temperature ℃ | Pulse Resistance 0-22Mpa | Ozone resistant 50±5pphm.40℃ | |
| 6.9Mpa | 10.3Mpa | ||||||||
| RBRH-A | 3.2±0.1mm | 10.5±0.2mm | ≥55 | ≤1.15 | ≥35h | -55 | 150times | 70±2h | |
| RBRH-B | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤0.54 | ≤0.69 | ≥35h | -40 | 150times | 70±2h |
| RBRH-C | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤1.08 | ≤1.38 | ≥35h | -40 | 150times | 70±2h |
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
