DJ80 Hydraulic Double Head Solid Tube Chamfering Machine End Mill
DJ80 Hydraulic Double-head Chamfering Machine Extended Type For Solid Rod Double-head Chamfering
A long type pipe and rod chamfering machine is an industrial equipment used to chamfer or bevel the edges of long pipes and rods.
Unlike short pipe and bar chamfering machines, these machines are designed to work on much longer lengths of pipe or rod, typically up to 6 meters or more.
The chamfering process is typically performed by a rotating cutting tool that removes material from the edges of the workpiece to create a chamfered edge.
The angle of the chamfer can be adjusted according to the requirements of the application.
Long type pipe and rod chamfering machines are available in various configurations, including manual and automatic models.
Some models may also include features such as automatic feeding and positioning systems to improve efficiency and accuracy.
These machines are commonly used in industries such as oil and gas, shipbuilding, and construction, where chamfering is a critical step in the manufacturing process of various components.
They are designed to handle heavy-duty workloads and are capable of producing highly precise and consistent chamfers over long lengths of pipe or rod.
Overall, long type pipe and rod chamfering machines offer a fast, efficient, and highly accurate solution for chamfering long lengths of pipe or rod, making them an essential tool in many industrial applications.
Feature:

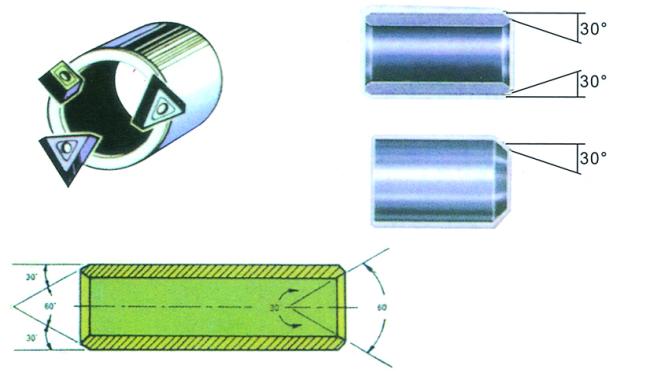

Clamping mold and cutter, through the exquisite design, to ensure the accuracy of the processing object and the cutter center line, and it can finish the processing of exterior angle,inner angle and face evenly in one time,and ensure the accuracy of machining dimension.
The use of pulley changes can be converted to convert a variety of speed, in response to a variety of different materials of metal,to obtain the longest tool use time.
Two feed speed can saves the time, slow speed and easy adjust,the limit has the cushioning function and processing is perfect.
Application Materials:steel tube, iron pipe, aluminum tube, copper tube, stainless steel, bar, PVC pipe.

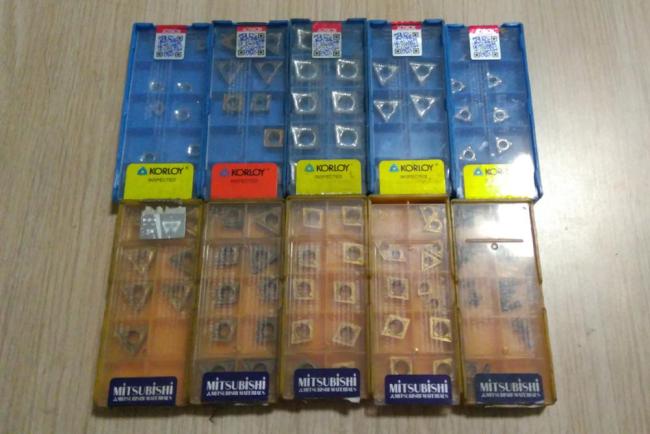

Fittings of chamfering machine:

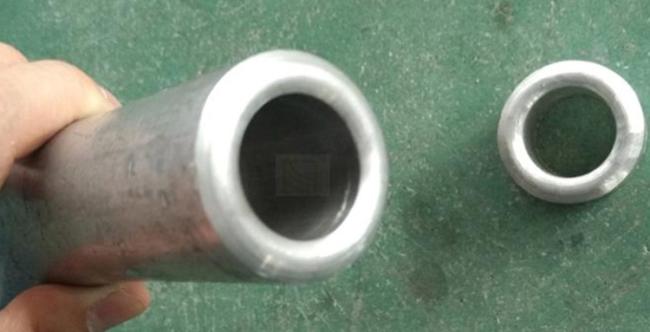

Sample:
Specification:
| Item |
DJ80 ( Dual head ) |
| Motor | 2.2KW |
| Air pressure (Mpa) | 6-9KGS/CM2,120ml/min |
| Cutting head | Standard cutting head |
| Applicable range:Φ14-Φ80mm | |
| Processing ability | Pipe diameter :Φ14-Φ80mm |
| Exterior angle of a round bar:Φ9-Φ38mm | |
| Length:100mm-500mm | |
| Stardard accessories | 1.One standard cutting head |
| 2.A group of clamp mould | |
| Special accessories | Clamp mould of different size |
| Weight of machine(kg) | 1060kg |
| Measurement size of machine (L×W×H)mm | 2000*1350*1200 |
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
Q1 What a Liye machinery main product is?
The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender
pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine
and bending press.
Q2 Why can we trust Founding mechanical technology?
1.All of our products have passed CE, TUV, ISO quality cerification
2.0ur products have been exported so far been more than 80 countries
3.This site is written by the Department of Mechanical Technology Founding how to choose the type of
article bender http:/www zjgly.net/en/xxzn.html)
Q3 When did you set up?
We specialize in the production of pipe processing machinery has reached 16 years, starting in
2008 to developthe intemational market.
Q4 Where is your factory?
Zhangjiagang City, Jiangsu Province, from Shanghai airport only two hours
Q5 Where is your ADVANTAGE?
1. In good faith-based, professiona skills,excellent quality
2 We have been committed to the development of new products, equipment canbe customized according to
needs
3. Strict management system and perfect after-sales service
