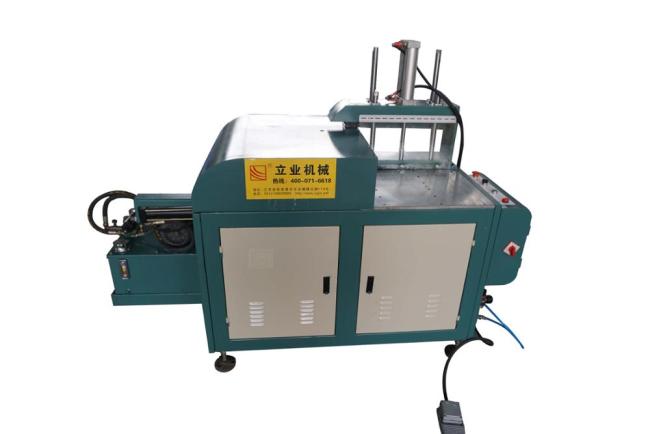

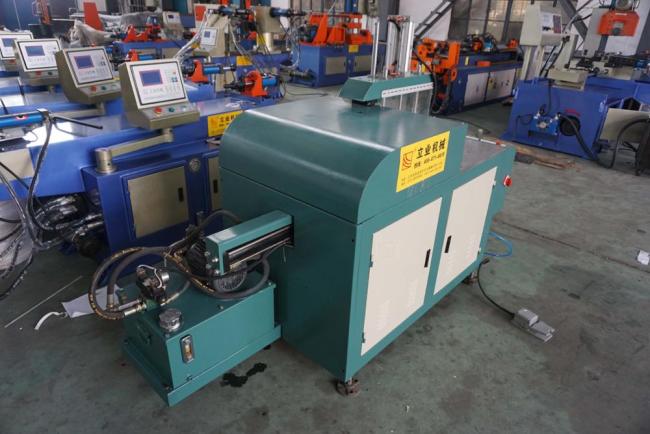

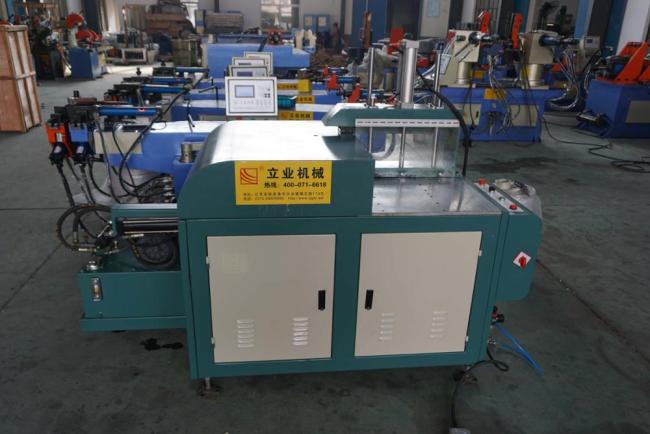

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine
Automatic aluminum cutting machine
Automatic aluminum cutting machine, suitable for small pieces of aluminum, cutting large amount, precision requirements of cutting work, small pieces of aluminum can be cut into a beam, one can cut off more than one, high efficiency, the machine has feeding, clamping, positioning and other functions, controlled by PLC to achieve automatic cutting work, using tungsten steel circular saw blade cutting, saw blade speed per minute 3200 rotation, The cutting material section is smooth and without burr. Suitable for all kinds of aluminum products manufacturing cutting precision requirements. Such as heat sink aluminum,U disk MP3 aluminum
Automatic CNC aluminum cutting machine is an advanced CNC cutting equipment, it can automatically complete aluminum, copper and other metal materials cutting. The following are the functions, characteristics, advantages and applications of automatic CNC aluminum cutting machine:
Function:
1. Can achieve a variety of cutting methods, such as straight cutting, arc cutting, etc.;
2. Can automatically identify the contour of machined parts and cut according to the graphic program;
3. High precision cutting can be achieved through computer control;
4. Can carry out a large number of continuous cutting operations;
5. High cutting precision, smooth and flat cutting surface.
L505 China supplier alloy saw blade aluminum cutting-off machine
Features
1.Installation of hidden alloy saw blade, high safety performance.
2.The automatic injection section without edges, on both sides, the saw blade is more durable.
Automatic control pressure, cutting speed can be adjusted.
3.Fast pneumatic clamping and hydraulic feed, greatly improve the cutting stability.
4.Can be customized credle, before positioning , can be a plurality of sawing, cutting special materials.
5.Aluminum scrap concentrated recovery.
6.Suitable for all kinds of large size of the posterior wall of copper, aluminum and sheet metal cutting.

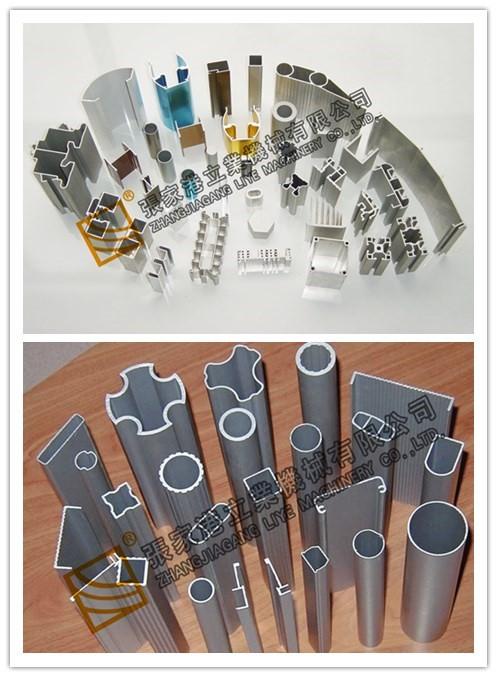

Sample:
Specification:
| Model | L405HQ | L505HQ |
| Performance | Specification | Specification |
| Sawing and cutting angle | 45°& 90° | 45°& 90° |
| Maximum sawing width(mm) | 400 | 500 |
| Maximum sawing height(mm) | 125 | 160 |
| Spindle speed | 2800-3300RPM | 2800-3300RPM |
| Install the largest saw blade | Φ405 | Φ505 |
| Motor power | 3KW | 4KW |
| Required pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Working table size(mm) | 530*830 | 580*830 |
| Size of packing box | 1350*1000*1480MM | 1350*1000*1480MM |
| Weight of machine | 400KG | 550KG |
| Size of material rack(Optional accessories) | Front 1000*390MM Back 150*390MM | Front 1000*390MM Back 150*390MM |
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
Q1 What a Liye machinery main product is?
The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender
pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine
and bending press.
Q2 Why can we trust Founding mechanical technology?
1.All of our products have passed CE, TUV, ISO quality cerification
2.0ur products have been exported so far been more than 80 countries
3.This site is written by the Department of Mechanical Technology Founding how to choose the type of
article bender http:/www zjgly.net/en/xxzn.html)
Q3 When did you set up?
We specialize in the production of pipe processing machinery has reached 16 years, starting in
2008 to developthe intemational market.
Q4 Where is your factory?
Zhangjiagang City, Jiangsu Province, from Shanghai airport only two hours
Q5 Where is your ADVANTAGE?
1. In good faith-based, professiona skills,excellent quality
2 We have been committed to the development of new products, equipment canbe customized according to
needs
3. Strict management system and perfect after-sales service
If you are interested in our products Click here to send us a message
