25mm 35mm Blade Fixed Angle High Speed Notching Machine
CH40 High-speed tube arc punching notching machine Pipe notcher machine arc punching machine
metal pipe arc punching machine can be widely used in construction, furniture, automobile, machinery manufacturing and other industries, to meet the processing needs of different industries for metal pipe.
Abrasive notcher machines: Some pipe notcher machines use abrasive grinding wheels to notch the pipe or tube, and are thus referred to as abrasive notcher machines.
These alternative names are used interchangeably to refer to machines that are designed to notch pipes and tubes for welding, joining, or other applications.

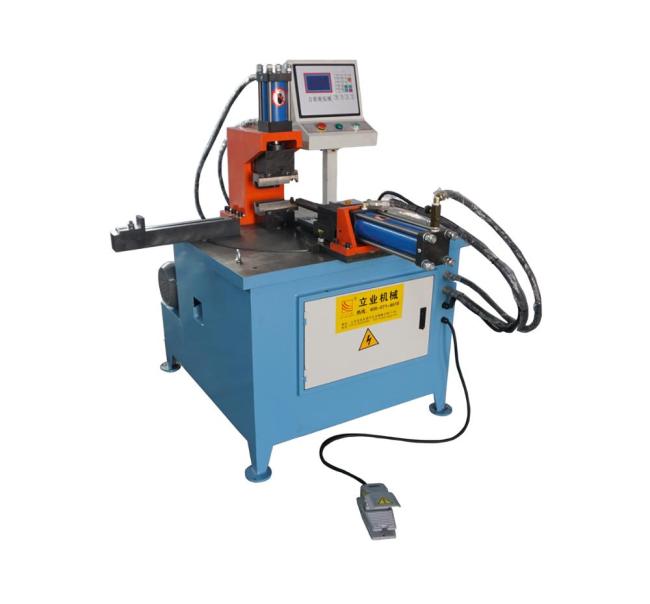

CH40 High-speed arc punching machine

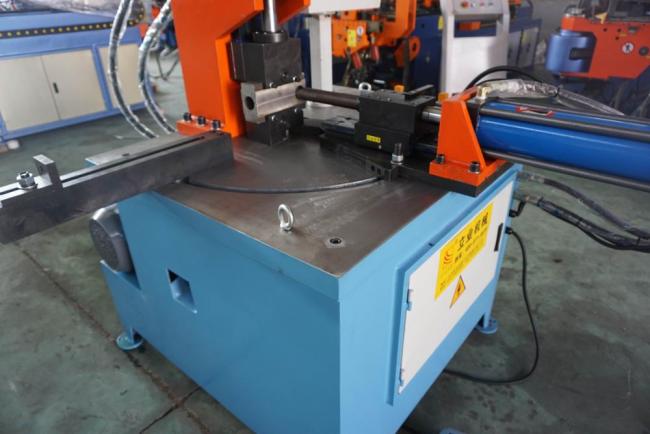

Detail:
Sample:
Specification:
| Specification/model | CH40 Arc punching machine |
| Ability to punching tube (steel pipe) mm | Φ40×2 |
| Adjustable Angle | 20°—90° |
| Period of changing mould | 5-6 Minutes |
| Motor power | 4kw |
| System pressure | 12Mpa |
| Measurement size of machine | 800*900*1580mm |
| Weight of machine | 800KG |
| Power supply | Three-phase power 380V 50HZ (customizable) |
Feature:
High-speed arc punching machine
Features
1. 20°-90° arc can be made.
2. Positive punching and reverse punching are all available.
3. Both straight tubes and elbows can be processed.
4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
