4K 2K WDR Dash Cam WIFI GPS Logger Dual Lens Car DVR Novatek96670 Chip

Price Negotiable
Price: bargaining
MOQ: 100
Delivery Time: Discussible
Brand: XINLIHANG
Product Description

4K+2K Dash Cam WIFI GPS Logger Dual Lens Car DVR Dash Cam Novatek96670 Chip Sony IMX335 Sensor WDR Night Vision Dash Camera Recorder

Product Name R16
Main chip Hisilicon3556
Screen MIPI 12 inches , resolution 1920x440p
Touch panel 11.26 inches Capacitive Screen
DDR 256M LPDDRIII 32
FLASH 128MBbytes NOR FLASH
Loudspeaker Built in, 8ohm / 1.5W
Microphone Built in, -40db 2db
Front camera Galaxycore 6P SONY IMX3354K(3840x2160p), 1/3" CMOS sensor; 145 angle view 4K (3840x2160P) , 30fps
Back camera AHD 1080P (1920X1080P), 25fps
Video format TS H.265(HEVC)
Image format JPG
OS Linux 4.9
UI Built in
Language Chinese/Traditional Chinese/ English/Russian/Japanese/Korean/Vietnamese/Thai language/ German/Spanish/French/Italian/Portuguese
Reverse Parking assit line Support

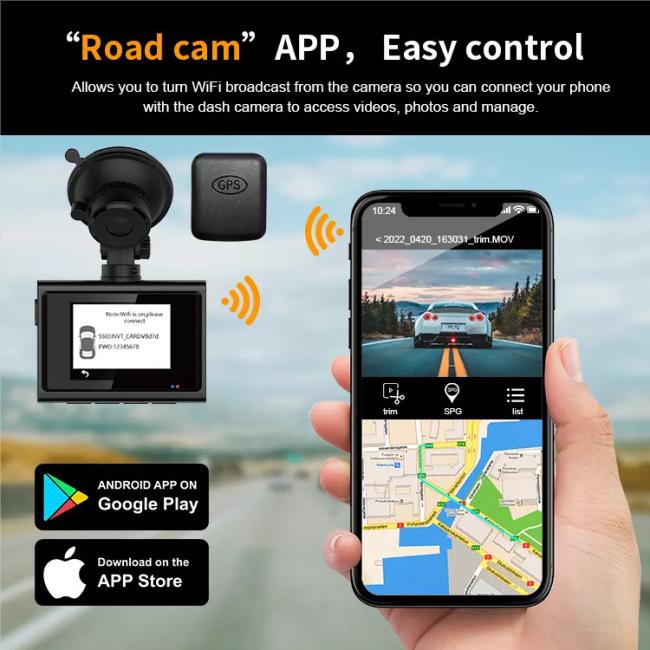

Mobile app connection by WiFi App name is RoadCam, support Live view, capture image, device settings ect.
Loop recording 1 minute/2 minutes/3 minutes to set up the video clip time
G-Sensor Support 3-axis Gravity sensor
Parking Monitor Support, detect the vehicle shaking, take a short video recording(15s) automatically and lock the video.
Time-lapse video Support (need add special ACC power cable,optional)
GPS log play Support (need add GPS antenna and use special GPS log player , optional)

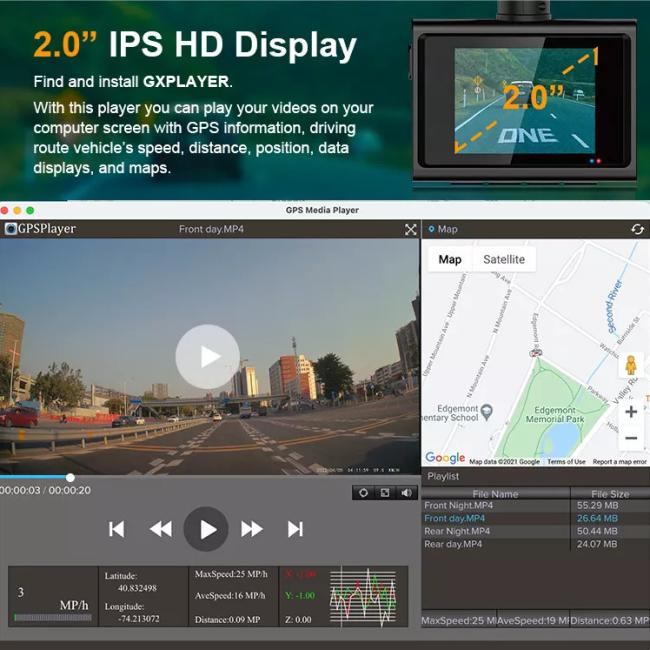

GPS player HIT_GPS_Playerv1.1.7 exe on windows computer
E-dog Support e-dog, Russia e-dog / Vietnam e-dog (optional)
Storage Temperature -20~+70掳C
Working Temperature -20~+70掳C
Power Key 1 Button
Reset Key 1 Button

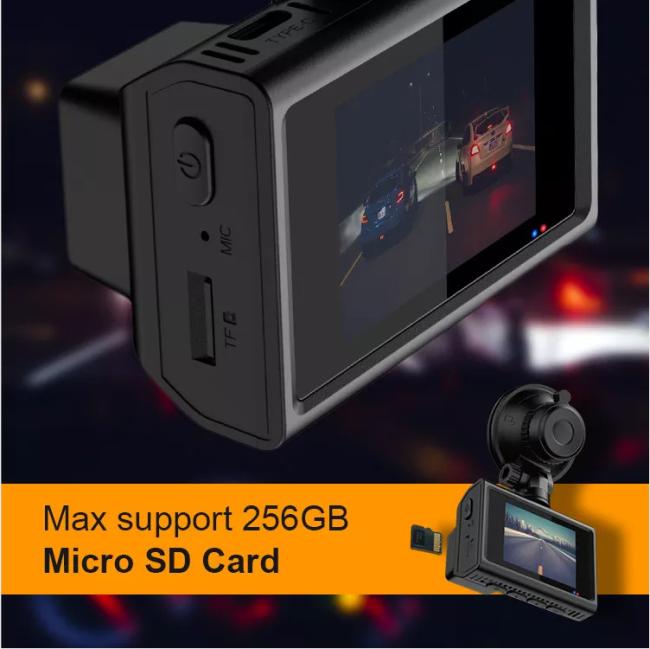

TF card slot Extended micro sd card, support max 256GB (C10 and U3 above)
USB port MINI USB 5pin, right bend 90掳
GPS port GPS 3.5mm port
Rear cam port AHD rear cam 2.5mm port, compatible with automatic reversing function.
Power Supply DC5V 2.5A car charger or by Hard wire kit (if need Time-lapse video function )
Battery Polymer lithium battery 500 mAh

【4K+2K Dual Dash Cam】R20 dash cam provides 4K+2K high-definition resolution. When recording front and rear dual dash cam at the same time, the resolution of the front dashboard camera can reach up to 3840*2160P@30fps, and the resolution of the rear backup dash camera can reach 2560x1440@30fps, providing you with an ultra-clear full hd view and capturing more details.

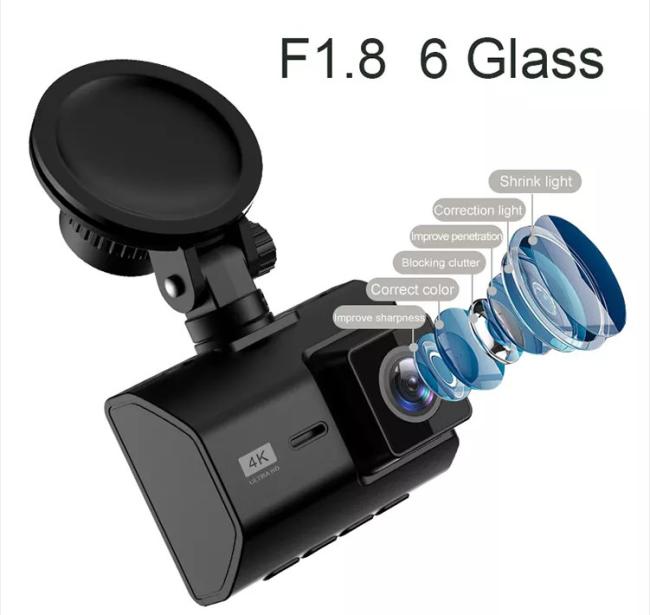

【Sony Sensor & Super Night Vision】The R20 dash camera for cars is equipped with Sony night vision sensor, which can image clearly in low light environment. The combination of F1.5 aperture and 6 glass, coupled with professional WDR and HDR technologies, ensures the clarity of night images.

【With GPS & WiFi Function】The GPS System accurately records your driving position and speed. With Windows and Mac compatible GPS player, you can play driving records such as video with GPS information, speed, location, data display, and route vehicle map on your computer screens. You can also play the videos through WiFi connecting to RoadCam App. Edit videos on the app and share them on your social network.

【24 Hours Parking Monitoring & Loop Recording 】With the dedicated hardware kit, the dashcam can automatically monitor the surrounding environment. When G-sensor detects a sudden collision, the car dvr camera will automatically lock video. Seamless loop recording will be automatically overwrite old files. Memory card recommend U3 high-speed (8GB-256GB). Lower than U3 will cause video freezes, black screen, and video cannot be recorded or played.

【Easy Installation & Warranty】This 4k car camera driving recorder front and back for cars is very light with a very intuitive interface. Easy to install and use and does not hinder your sight. Our dual cameras provides 12 months warranty, and we offer 7*24 hours technical support.
