12KW-16KW 3 MPPT High Voltage Hybrid Inverter Single Phase
Price:
US$+1143-1831+piece
MOQ:
1
Delivery Time:
10-15workday
Brand:
Deye Hybrid Inverter
Product Description

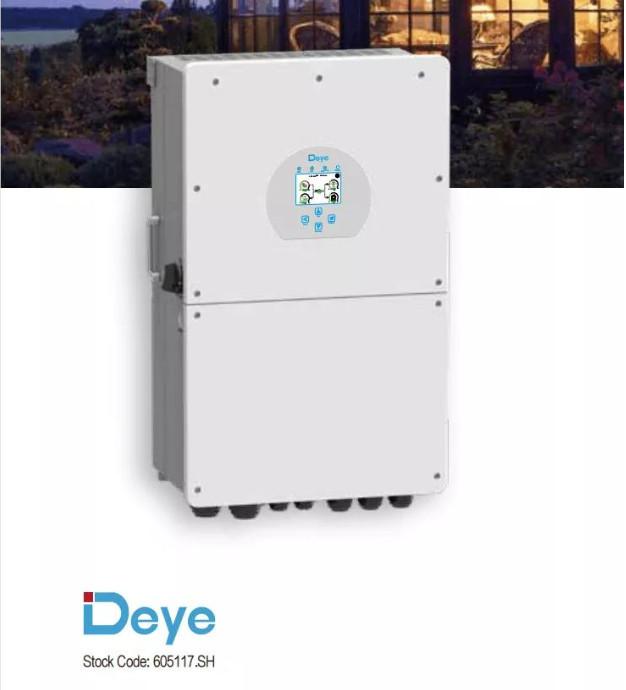

High efficiency Deye SUN-12/14/16K-SG01LP1 12-16KW Single phase 3 MPPT for energy storage inverter with hybrid inverter.
| Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1- EU |
SUN-16K-SG01LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 220A | 250A | 290A |
| Max. Discharging Current (A) | 220A | 250A | 290A |
| UPS Power (W) | 12000 | 12000 | 12000 |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Yes | ||
| Charging Strategy for Li-lon Battery |
Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 15600W | 18200W | 20800W |
| Max. DC Input Voltage (V) | 500 | ||
| Start-up Voltage (V) | 125 | ||
| MPPT Range (V) | 150~425V | ||
| Rated DC Input Voltage (V) | 370 | ||
| PV Input Current (A) | 26+26+26 | ||
| Max. PV ISC (A) | 44+44+44 | ||
| No.of MPPT Trackers | 3 | ||
| No.of Strings Per MPPT Tracker |
2 | ||
| AC Output Data | |||
| Rated AC OutputPower (W) | 12000W | 14000W | 16000W |
| AC Output Rated Current (A) | 52.2 | 60.9 | 69.6 |
| Max. Continuous AC Passthrough (A) |
100 | ||
| Peak Power (off grid) | 2 times of rated power, 5 S | ||
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) | ||
| Grid Type | Single Phase | ||
| DC injection current(mA) | <0.5% 1n | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| MPPT Efficiency | 99.90% | ||
| Certifications and Standards | |||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116,IEC 61727,G99,G98 VDE 0126-1-1,RD 1699,C10-11 |
||
| Safety EMC/Standard | EC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | ||
| General Data | |||
| Operating Temperature Range (℃) |
45~60°℃,>45°℃ Derating | ||
| Cocling | Smart cooling | ||
| Noise (dB) | <30 dB | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 49 | ||
| Size (mm) | 464W×798.4H×300D | ||
| Protection Degree | P65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
