3000w 3500w 5000w Growatt Off Grid Inverter Single Phase SPF 3000-5000 ES

Price Negotiable

Price: US$+1124-1145+piece

MOQ: 1

Delivery Time: 10-15workday

Brand: Growatt

Product Description

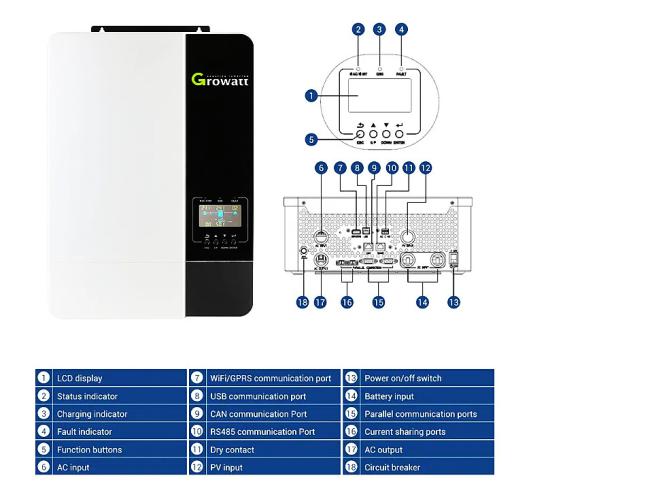

Growatt Off-Grid Storage Inverter SPF 3000-5000 ES 3000w 3500w 5000w single phase

Output data (AC)	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC±5%@ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency(Pe ak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC～430VDC
Maximum PV Voltage	450VDC
Maximum Solar Charge Current	80A	100A
AC CHARGER
Charge Current	60A	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC;90-280 VAC
Frequency Range	50Hz/60Hz(Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensin g)
Altitude	<2000m
Operating Temperature	0℃-55℃
Storage Temperature	-15℃-60℃
