Deye 12kw High Voltage Hybrid Inverter SUN-12K-SG04LP3-EU Off On Grid
Price:
US$+2128-2328+piece
MOQ:
1
Delivery Time:
10-15workday
Brand:
Deye
Product Description

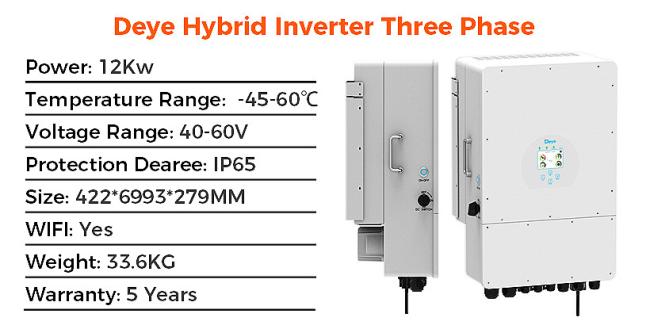

Ningbo Deye hybrid solar inverter 12kw SUN-12K-SG04LP3-EU 3 phase eu 12kw off on grid solar hybrid inverter
| Model | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3- EU |
SUN-12K-SG04LP3- EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range(V) | 40~60V | ||

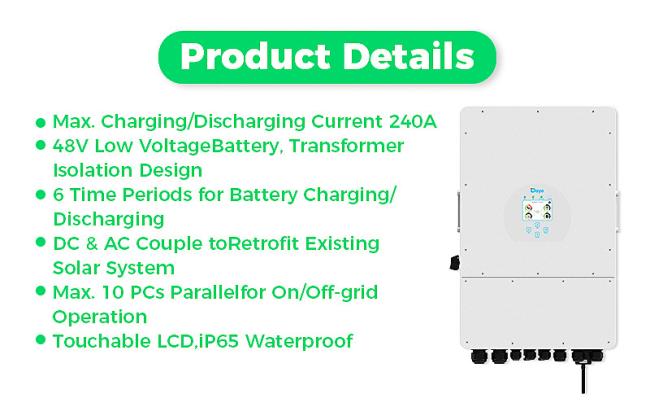

| Max. Charging Current (A) | 190A | 210A | 240A |
| Max. Discharging Current (A) | 190A | 210A | 240A |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optiona | ||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 10400W | 13000W | 15600W |
| PV Input Voltage (V) | 550V(160V~800V) | ||
| MPPT Range(V) | 200V-650V | ||
| Start-up Voltage (V) | 160V | ||
| PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A |
| No.of MPPT Trackers | 2 | ||
| No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 |
| AC Output Data | |||
| Rated AC Output and UPS Power (W) |
8000W | 10000W | 12000W |
| Max. AC Output Power (W) | 8800W | 11000W | 13200W |
| Peak Power(off grid) | 2 times of rated power, 10 S | ||
| AC Output Rated Current (A) | 12A | 15A | 18A |
| Max. AC Current (A) | 18A | 23A | 27A |
| Max. Continuous AC Passthrough (A | 50A | 50A | 50A |
| Output Frequency and Voltage | 50 /60Hz; 400Vac (three phase) | ||
| Grid Type | Three Phase | ||
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | 99.90% | ||
| Protection | |||
| PV Input Lightning Protection | Integrated | ||
| Anti-islanding Protection | Integrated | ||
| PV String Input Reverse Polarity Protection |
Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge protection | DC Type II/AC Type Il | ||
| Certififications and Standards | |||
| Grid Regulation | EC61727,IEC62116,IEC60068,IEC61683,NRS097-2-1 | ||
| Safety EMC/Standarc | IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11,IEC61000- 3-12 |
||
| General Data | |||
| Operating Temperature Range (℃) | 25~60℃,>45°C Derating | ||
| Cooling | Smart cooling | ||
| Noise (dB) | <30 dB | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 36.8 | ||
| Size (mm) | 422W×658H×281D | ||
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
