Automatic Control Standing Seam Roofing Machine Hydraulic Cutting
Automatic Control Standing Seam Roof Tile Roll Forming Machine Hydraulic Cutting

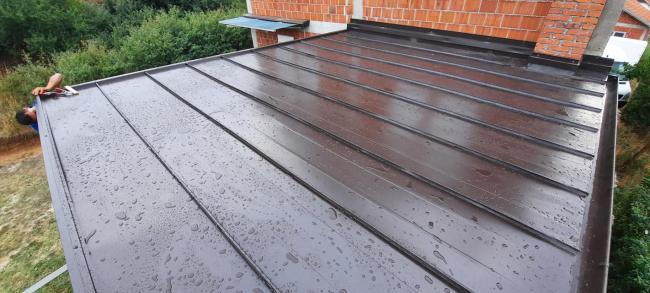

1.Application of Standing Sem Roll Forming Machine:
2. Machine picture of Standing Seam Roll Forming Machine:
3. Machine specification of Standing Seam Roll Forming Machine
| Machine Specifications | |
| Weight | About 1.25tons |
| Size | About 2.2*1.15*1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Material | Color Steel Coils |
| Thickness | 0.3-0.7 mm |
| Yield Strength | 235Mpa |
| Quantity of forming rollers stations | 8 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 10-15m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12 steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2.2kw hydraulic motor |
4. Main componets of Standing Seam Roll Forming Machine:
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Main Machine for roll forming | set | 1 |
| 3 | Cutting System | set | 1 |
| 4 | Output Table | set | 1 |
| 5 | Control System(PLC) | set | 1 |
| 6 | hydraulic station | set |

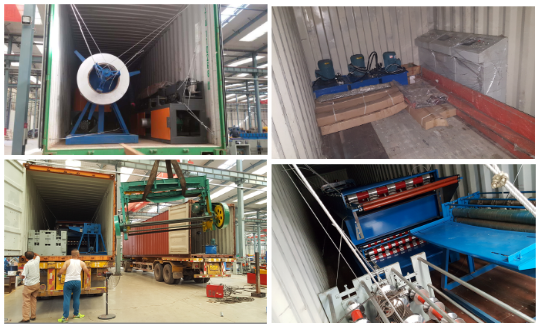

5. Delivery and package
6. Our service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
