Color Steel Sheet Metal Cut To Length Machine 30KW PLC Control
PLC control coil sheet metal cut to length machine China manufacture
1. Description of Cut To Length Line Machine:
Our cutting line machinery is mainly used for cut raw materials like the Stainless Steel Strips, Steel Coil, Carbon Steel Strips, and Copper Strips. The machine can cut the raw material to short length, The main parts of cutting line machine are hydraulic uncoiler, leveling unit, cutting device, Conveyor device, Automatic stacker, Hydraulic system, Electrical system etc.
Because the thickness of the raw material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a sitting line, please send me your raw material, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of Cut To Length Line Machine:
| Bending Machine Specifications | |
| Weight | About 10 tons |
| Size | About 30000x7500x2000mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-3mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 30kw |
| Hydraulic unit motor power: 10kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Cut To Length Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Leveling device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Conveyor device | 1 |
| 6 | Automatic stacker | 1 |
| 7 | Hydraulic system | 1 |
| 8 | Electrical system | 1 |
4. The Cut To Length Line Machine Advantages
1.The qualityinspection team has more than 8 years of experience. The department adopts the standard to strictly test the quality of the machine parts, and the machine is also tested after the assembly is completed.
2.we also have construction team.Can save you time and energy.
3.Our machine frame, shaft and rollers raw material all come from China famouse brand.
6. The Cut To Length Line Machine Application
This machine is widely used to cut the whole steel coil steel coils into shorter steel sheets.

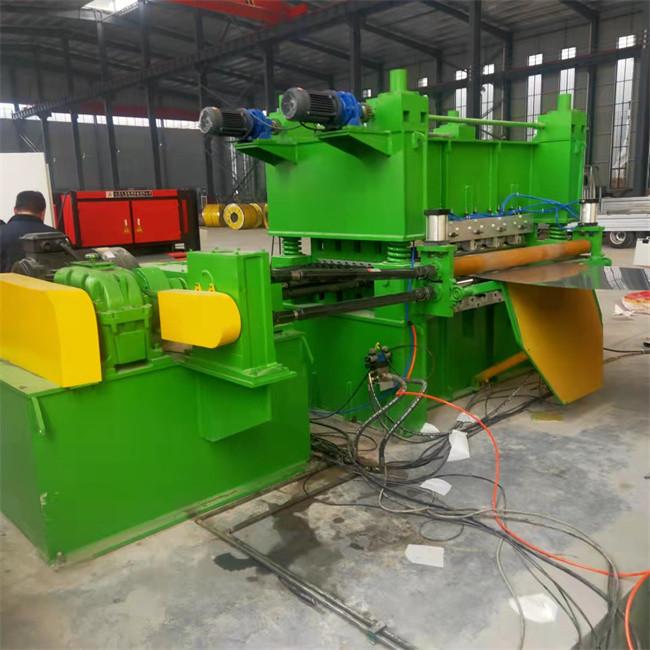

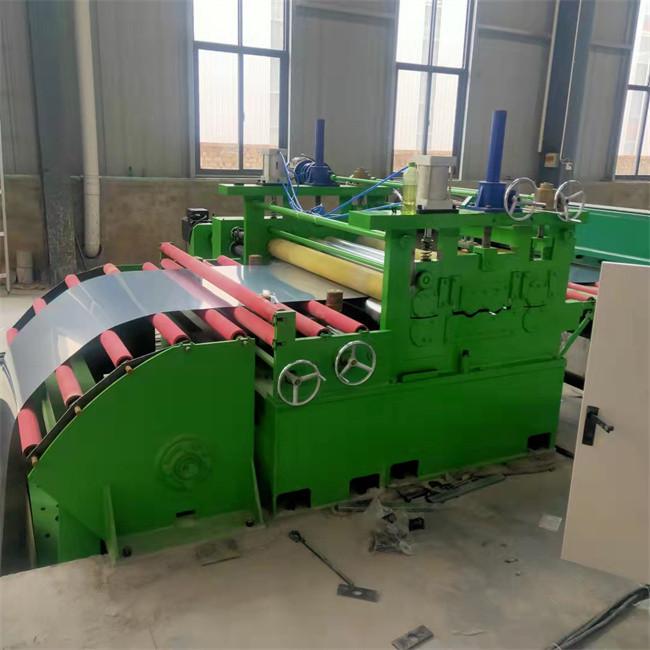

7. The Cut To Length Line Machine Product photo
FAQ
Q1. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q:How long can the machine be built?
A:The machine takes about 50-60 days to complete, if you are in a hurry to use the machine , we can make it urgently, because we have enough raw material.
