Industrial Open Frame SAW Touch Monitor Touchscreen 19 Inch Surface Waterproof
19 Inch SAW Touch Monitor Waterproof Industrial Grade Open Frame
SAW Touch Monitor Main Features
- KeeTouch SAW touch screen, finger operation
- Professional design with front surface waterproofing function
- The SAW Touch Monitor has high contrast ratio and wide viewing angle
- Multiple mounting options include VESA mount, horizontal vertical brackets mount
- VGA+DVI interfaces,USB/ RS232 for touch
- the SAW Touch Monitor support Operation system: XP,WIN7,WIN8,WIN10, Linux, Android
- Other sizes are optional (7’’- 43’’)
SAW Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0190US-SA4BCW (P/N:KOT-190C-013) | |
| Series | OT | |
| Display Type | 5:4 Ratio 19" TFT-LCD | |
| Active Area | 376.32*301.06 (mm) | |
| Monitor Dimensions (W*H*D) | 416*344*54(mm) | |
| Suggested Resolution | 1280x1024 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.9 -80KHz/ 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥50,000 Hours | |
| LED Back Light Life (Typ.) | ≥50,000 Hours | |
| Weight(N.W/G.W) | 5Kg(1pcs)/13.5Kg(2pcs in one package) | |
| Package dimensions | 530*250*460(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 19" Surface acoustic wave touch screen |
| Touch input | USB/RS232 |
| Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 382*305(mm) |
| Thickness | 4±0.1(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
SAW Touch Monitor Mechanical Dimensions
Applications

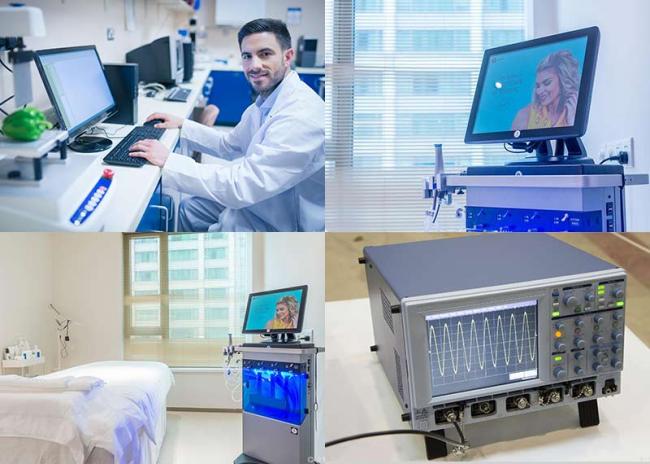

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for the SAW Touch Monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
