1000cd/M2 PCAP High Brightness Touch Monitor , Open Frame Lcd Touch Monitor 27 Inch
27 Inch High Brightness Touch Monitor Open Frame PCAP 1000cd/M2
High Brightness Touch Monitor Main Features
- Multi-points PCAP touch panel, high sensitive and fast-response
- Anti-glare, vandal-proof and dust-proof
- High brightness touch monitor sunlight readable,1000 - 2000 nits optional
- VGA+HDMI interfaces,USB for touch
- Pure flat design, sleek and fashionable with IP65 surface waterproof function
- Multiple mounting options include VESA mount, horizontal or vertical brackets mount
- With high quality industrial panel, lasting touch, durable in harsh environment
- Other sizes are optional (7’’- 43’’)
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0270U-CA4PH (P/N:KOT-270P-005-01) | |
| Series | OT | |
| Display Type | 16:9 Ratio 27" TFT-LCD | |
| Active Area | 597.6*336.15(mm) | |
| Monitor Dimensions (W*H*D) | 655.9*394.4*87(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 1000cd/m2 |
| With Touch Monitor | 850cd/m2 | |
| Response Time (Typ.) | 12ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 3000:1 | |
| Video Input | VGA/HDMI | |
| Frequency (H/V) | 30～80KHz / 50～76Hz | |
| Power Supply |
Type: External brick Display voltage: DC 24V 7A ±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | 30,000 Hours | |
| LED Back Light Life (Typ.) | 30,000 Hours | |
| Power Consumption | Standby Power: 2.5W / Operating Power: ≤120W | |
| Mount Interface |
1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
|
| Weight(N.W/G.W) | 12.5Kg/17.35Kg | |
| Package dimensions | 80.5*23.3*55.3cm | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Touch screen Type | 27”Projected Capacitive Touchscreen | |
| Touch System Interface | USB | |
| Support System | 10 points in win7,Win xp 1 point | |
| Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
High Brightness Touch Monitor Mechanical Dimensions

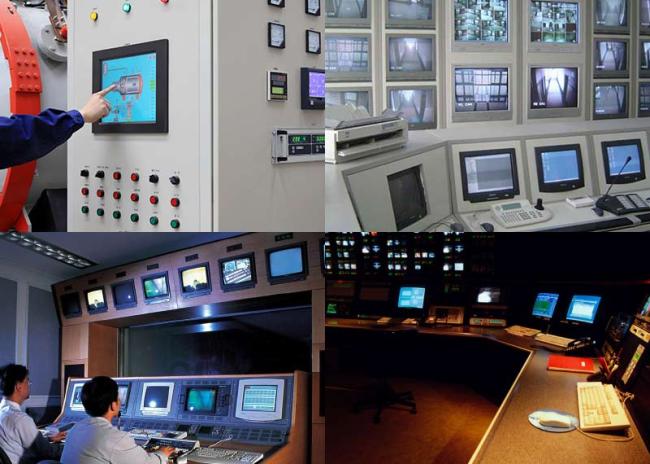

Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the High Brightness Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the High Brightness Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for the High Brightness Touch Monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
