Outdoor 8 Inch Touch Screen Monitor 1024×768 For Vending Machines
8 Inch High Brightness Touch Monitor For Outdoor Kiosks Vending Machines
High Brightness Touch Monitor Main Features
- PCAP multi touch screen, accurate touch and fast-response
- High contrast, high resolution touch monitor with full viewing angle
- High brightness sunlight readable, 1000 - 2000 nits optional
- Anti-glare, anti-vandal and dust-proof functions
- Pure flat high brightness touch monitor with IP65 front side waterproof function
- HDMI+VGA+DVI interfaces,USB for touch
- Operation system: XP,WIN7,WIN8,WIN10, Linux, Android
- Other sizes can be offered (8’’- 43’’)
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0080U-CA4PH (P/N:KOT-008C-005) | |
| Series | OT | |
| Display Type | 4:3 Ratio 8" TFT-LCD | |
| Active Area | 163*122.5(mm) | |
| Monitor Dimensions (W*H*D) | 214*177*40.7(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.2M | |
| Brightness (Typ.) | Pure LCD Panel | ≥1000cd/m2 |
| With Touch Monitor | ≥850cd/m2 | |
| Response Time (Typ.) | 16ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/HDMI/DVI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥ 30,000 Hours | |
| LED Back Light Life (Typ.) | ≥ 30,000 Hours | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤13W | |
| Mount Interface | Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
| Touch Screen | |
| Touch Type | 8" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >80% |
| Support System |
Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |

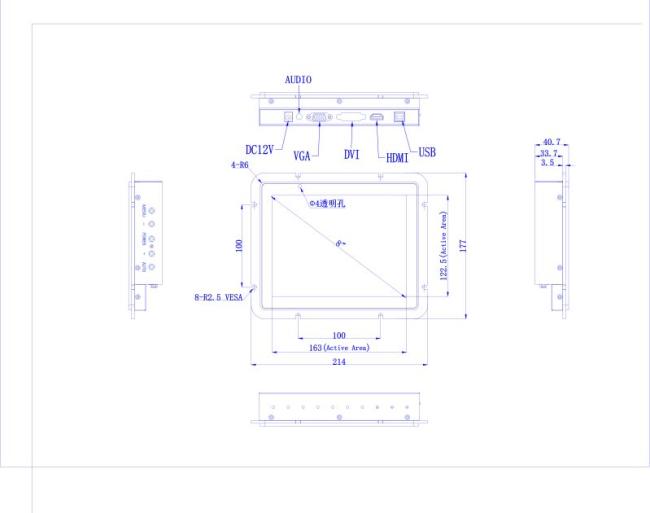

High Brightness Touch Monitor Mechanical Dimensions

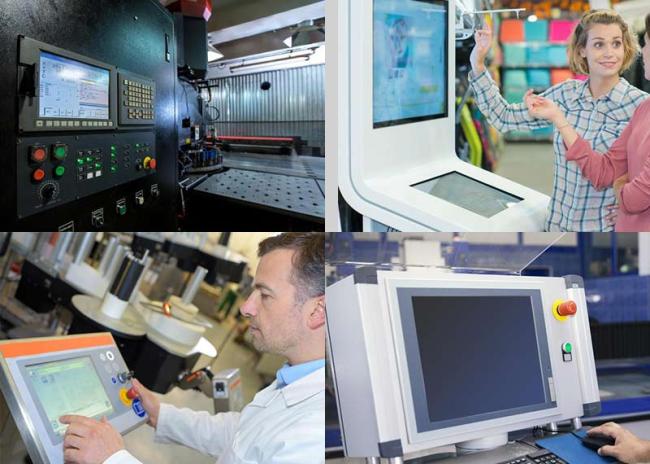

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the High Brightness Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the High Brightness Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for the High Brightness Touch Monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
