800×600 Resolution SAW Touch Monitor 10.4" For Self Service Kiosk
800×600 Resolution SAW Touch Monitor 10.4" For Self Service Kiosk
SAW Touch Monitor Description:
KeeTouch SAW touch monitor integrates with energy saving LEDS and anti-vandal touch glass to achieve a long working life span. It can support less than 8ms fast and accurate single touch experience. There are multiple mounting options include VESA mount, horizontal vertical brackets mount. Custom service is available for screen size, LCD brightness, interface, metal case color, etc.
SAW Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0104U-SA4BP (P/N:KOT-104P-002) | |
| Series | OT | |
| Display Type | 4:3 Ratio 10.4" TFT-LCD | |
| Active Area | 211.2*158.4(mm) | |
| Monitor Dimensions (W*H*D) | 257*199*45.5(mm) | |
| Suggested Resolution | 800*600 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 270cd/m2 | |
| Response Time (Typ.) | 20ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 75°/75° |
| Vertical(up/down) | 50°/60° | |
| Contrast Ratio (Typ.) | 500:1 | |
| Video Input | VGA | |
| Frequency (H/V) | 37.9～46.9KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | 50,000 Hours | |
| LED Back Light Life (Typ.) | 50,000 Hours | |
| Weight(N.W/G.W) | 2.25Kg(pcs) / 6.55Kg(2pcs in one package) | |
| Package dimensions | 330*220*280(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1W / Operating Power: ≤8W | |
| Mount Interface |
1.VESA 75mm 2.Mount bracket, horizontal or vertical mount
|
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 10.4" Surface acoustic wave touch screen |
| Touch input | USB |
| Response Time | ≤8ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10 |
| Active Area | 212*159(mm) |
| Thickness | 4.0±0.1(mm) |
| Touch Test | 50,000,000 times |
| Input Voltage | 5V |

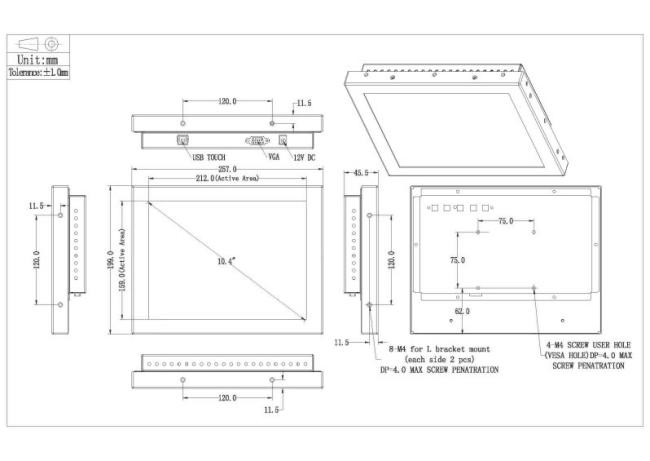

SAW Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Our Advantages:
-
More than 15 years professional experience in touch product industry
-
200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects
-
5 production lines including 3 touch screen lines, 1 touch monitor line and 1 hardware accessories line
-
High-tech and innovative enterprise
-
More than 175+ design patents
-
Completely and strictly quality control system
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What package do you provide for SAW touch monitor?
Our package usually is carton.
6. Do you have SAW touch monitor in stock?
Yes, we have a large quantity of stock for our regular model products.
