IP65 Waterproof 10.1 Inch Touch Monitor Dustproof With 10 Points Touch
10.1 Inch PCAP Touch Monitor IP65 Waterproof Dustproof With 10 Points Touch
PCAP Touch Monitor Description
The PCAP touch monitor is IP65 rating waterproof, dustproof and scratch resistant, even works in harsh environment. This device provide a variety of interfaces, USB for touch, VGA and HDMI for PC connecting, DC 5V. It supports flexible mounting including VESA 75*75mm, horizontal or vertical bracket mount.
PCAP Touch Monitor Specifications
| Complete Machine | ||||
| Model No. | KOT-0101U-CA4P(KOT-101P-002) | |||
| Type | OT | |||
| Display Type | 16:10 Ratio 10.1＂TFT-LCD, LED backlight | |||
| Active Area | 216.96*135.6(mm) | |||
| Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |||
| Suggested Resolution | 1280*800 WXGA | |||
| Support Colors | 16.2M | |||
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 | ||
| With Touch Monitor | 255cd/m2 | |||
| Response Time (Typ.) | 16ms | |||
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° | ||
| Vertical(up/down) | 85°/85° | |||
| Contrast Ratio (Typ.) | 800:1 | |||
| Video Input | VGA/HDMI | |||
| Frequency (H/V) | 30～80KHz / 60～75Hz | |||
|
Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|||
|
Environment |
Operating Temp. | 0～50°C | ||
| Operating RH | 20%～80% | |||
| Storage Temp. | -20～60°C | |||
| Storage RH | 10%～90% | |||
| MTBF | ≥ 50,000 hours | |||
| LED Back Light Life (Typ.) | ≥ 50,000 hours | |||
| Weight(N.W/G.W) | 1.85Kg(1 pcs)4.5Kg(2pcs in one package) | |||
| Package dimensions | 332*220*285mm(2pcs in one package) | |||
| Power Consumption | Standby Power: ≤1W Operating Power: ≤13W | |||
| Mount Interface |
1. VESA 75mm 2. Mount bracket, horizontal or vertical mount |
|||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |||
| Regular Warranty | 1 year | |||
| Touch Screen | |
| Touch Type | 10.1" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >85% |
| Support System | WIN7,WIN8,WIN10support 10points, XP support single point |
| Active Area | 216.96*135.6(mm) |
| Thickness | 3.75±0.2(mm) |
| Touch Test | ≥ 50,000,000 times |
| Input Voltage | DC 5V±5% |

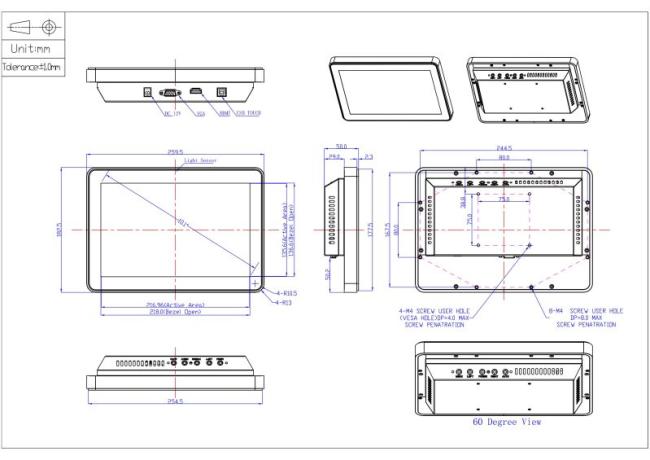

PCAP Touch Monitor Mechanical Dimensions
Applications
PCAP Touch Monitors are very well-suited for retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
