17 Inch PCAP Touch Monitor , TFT Panel Monitor 1280×1024 Resolution
17 Inch PCAP Touch Monitor TFT LCD Panel Resolution 1280*1024 HD VGA Input
PCAP Touch Monitor Description
Using PCAP Technology, it supports multi-points for major operating systems XP, WIN7,WIN8, WIN10, Linux, Android. The PCAP Touch Monitor deliver high sensitive and fast response excellent touch experience. It is anti-vandal with 3.9mm tempered glass and compliant with UL-60950 &IK-08 impact testing.
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0170U-CA4P | |
| Series | OT | |
| Display Type | 5:4 Ratio 17" TFT-LCD | |
| Active Area | 337.9*270.3(mm) | |
| Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) | |
| Suggested Resolution | 1280*1024 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
| Power Supply | Type: External brick | |
| Display voltage: DC 12V±5% | ||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) | |
| Package dimensions | 466*185*403(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface | 1. VESA 75mm and 100mm | |
| 2. Mount bracket, horizontal or vertical mount | ||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 17" Riot capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 340.92*273.34(mm) |
| Thickness | 3.9±0.3(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
Why Choose Us
Price:
With the experience of 16 years in the display industry, we already accumulate many leading suppliers for raw materials, which help us save the cost effectively and support our clients with a very competitive price.
Quality:
Our products are certified with CE, UL, CB, BIS, ISO 14001, ISO 9001 etc, they are all go through strict and comprehensive quality management system test, which enable us to control every production aspect and ensure the reliable and good performance of products from the very beginning to the finished process.
Applications

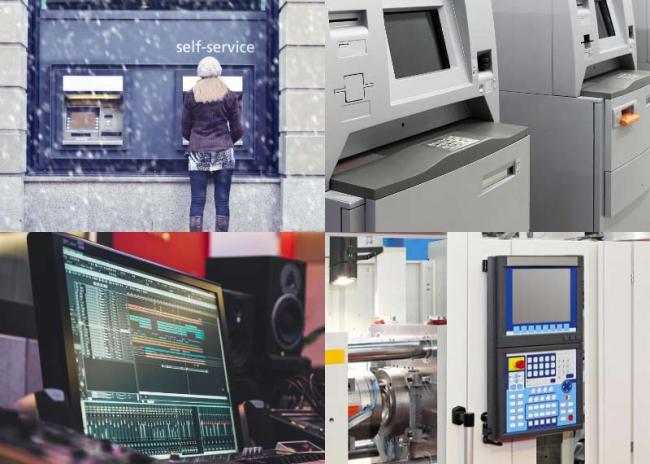

Our PCAP touch monitors are widely mounted in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
