Anti Glare High Brightness Touch Monitor IP65 Surface Waterproof 10.4 Inch
10.4 Inch High Brightness Touch Monitor Anti-Glare IP65 Surface Waterproof
High Brightness Touch Monitor Main Features
-
Anti-glare, anti-vandal high brightness touch monitor
-
PCAP multi touch screen, high quality touch experience
-
High brightness, readable under direct sunlight, 1000 - 2000 cd/m2 optional
-
Pure flat designed high brightness touch monitor, IP65 frontside waterproof
-
DVI + VGA interfaces,USB for touch
-
Support system: XP,WIN7,WIN8,WIN10
-
Other sizes can be offered (8’’- 43’’)
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0104U-CA4PH (P/N:KOT-104P-011) | |
| Series | OT | |
| Display Type | 4:3 Ratio 10.4" TFT-LCD | |
| Active Area | 211.1*158.4(mm) | |
| Monitor Dimensions (W*H*D) | 276.4*219.4*43.5(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | ≥1000cd/m2 |
| With Touch Monitor | ≥800cd/m2 | |
| Response Time (Typ.) | 16ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 75°/75° |
| Vertical(up/down) | 75°/75° | |
| Contrast Ratio (Typ.) | 900:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥ 30,000 Hours | |
| LED Back Light Life (Typ.) | ≥ 30,000 Hours | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤18W | |
| Mount Interface |
1.VESA 75mm 2.Mount bracket, horizontal or vertical mount
|
|
| Weight(N.W/G.W) | 2.2Kg(1pcs) /6.4Kg(2pcs in one package) | |
| Package dimensions | 350*221*298(mm)(2pcs in one package) | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 10.4" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >80% |
| Support System |
Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Active Area | 213*160.2(mm) |
| Thickness | 3.75±0.2mm |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
High Brightness Touch Monitor Mechanical Dimensions

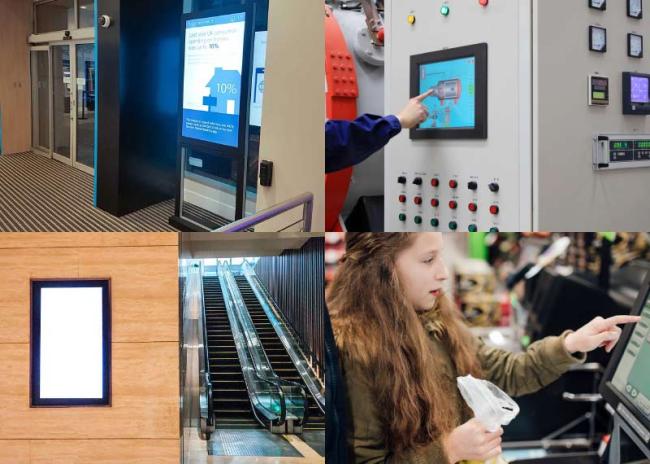

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
