1920x1080 18.5" Touch Screen Monitor Pure Flat For Kiosks ATM
18.5 Inch PCAP Touch Monitor Pure Flat 1920x1080 Kiosks ATM
PCAP Touch Monitor Main Features:
- With PCAP touch technology, high sensitive and fast response
- Dust-proof, vandal-proof PCAP touch monitor, durable even in harsh environment
- Professional pure flat design, IP65 surface water-proof
- High resolution, high contrast PCAP touch monitor with high clarity image
- VGA + DVI interfaces,USB for touch
- Multiple mounting options include VESA mount, horizontal vertical brackets mount
- Support system: XP,WIN7,WIN8,WIN10, Linux, Android
- Other sizes can be offered (7’’- 43’’)
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-185P-001(P/N:KOT-0185U-CA4P) | |
| Series | OT | |
| Display Type | 16:9 Ratio 18.5" TFT-LCD | |
| Active Area | 409.8*230.4(mm) | |
| Monitor Dimensions (W*H*D) | 449.4*270*46(mm) | |
| Suggested Resolution | 1920*1080@ 60Hz | |
| Support Colors | 16.7M | |
|
Brightness (Typ.) |
Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
|
Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
|
Environment |
Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 3.64Kg(1pcs)/8.93Kg(2pcs in one package) | |
| Package dimensions | 525*190*385(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤25W | |
|
Mount Interface |
1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount |
|
|
OSD Control |
Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 18.5" Riot capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 410.8*231.4(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
PCAP Touch Monitor Mechanical Dimensions

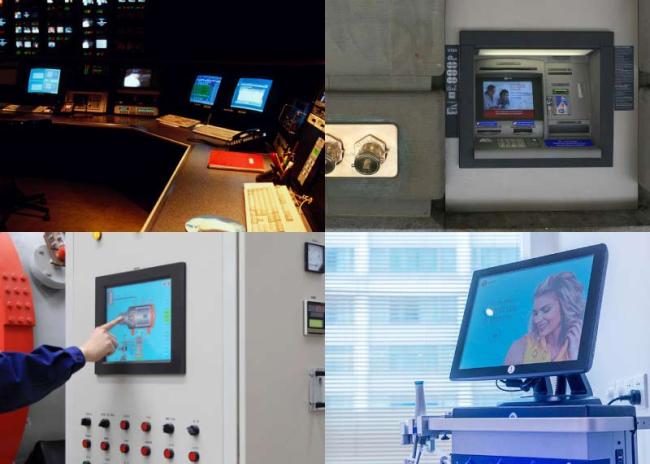

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
