Dust Proof 8 Inch Industrial Monitor Touch Screen Open Frame Multifunctional
8 Inch Industrial Open Frame Touch Screen Display Monitor With High Brightness Option
KeeTouch Touch Screen Display Monitor Main Features:
- Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
- IP65 grade water-proof,dust-proof for front panel.
- Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
- Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
- Compatible with various industrial systems/application.
- Support Resistive touch, SAW touch, IR touch, Capacitive touch.
- CCC, ETL, FCC, CE, CB, RoHS certificate.
- Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
KeeTouch Touch Screen Display Monitor Main Features:
| Complete Machine | ||
| Model No. | KOT-0080U-CA4PH (P/N:KOT-008C-005) | |
| Series | OT | |
| Display Type | 4:3 Ratio 8" TFT-LCD | |
| Active Area | 163*122.5(mm) | |
| Monitor Dimensions (W*H*D) | 214*177*40.7(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.2M | |
| Brightness (Typ.) | Pure LCD Panel | ≥1000cd/m2 |
| With Touch Monitor | ≥850cd/m2 | |
| Response Time (Typ.) | 16ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/HDMI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥ 30,000 Hours | |
| LED Back Light Life (Typ.) | ≥ 30,000 Hours | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤13W | |
| Mount Interface | Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 8" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >80% |
| Support System |
Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

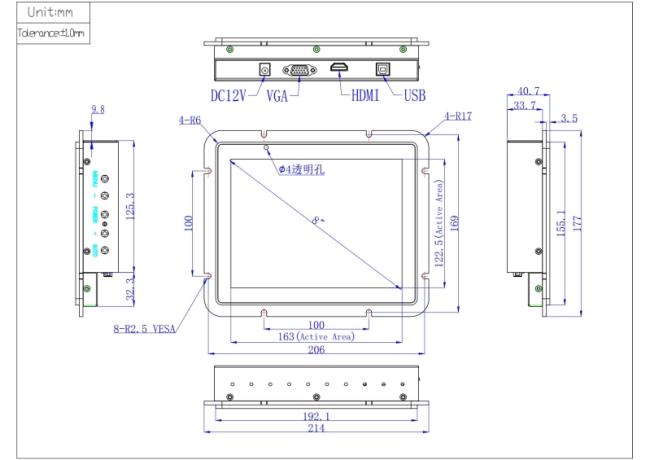

KeeTouch Touch Screen Display Monitor Mechanical Dimensions
Applications
lAutomatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
lPublic Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
lBusiness Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
lFinancial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; · Non-profit Organizations: Telecommunications, post offices, hospital, schools;
lReal Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
lEntertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
