Anti Vandal Infrared Touch Monitor , 19 Inch Open Frame Touch Monitor 1280×1024
19 Inch Infrared Touch Monitor Open Frame IP65 Surface Water Proof
Infrared Touch Monitor Main Features
- Infrared touch screen, accurate touch, fast response, 1- 40 points optional
- High resolution, high contrast infrared touch monitor, high definition visual enjoyment
- IP65 front frame waterproof, anti-vandal Infrared Touch Monitor
- Industrial grade infrared touch monitor, lasting touch, durable even in harsh environment
- Multiple mounting options include VESA mount, horizontal or vertical brackets mount
- VGA interface, USB for touch input
- Support system: XP, WIN7, WIN8, Linux
- Other sizes can be offered (7’’- 32’’)
Infrared Touch Monitor Specifications
| Model No. | KOT-0190U-IR3W | |||
| Series | OT | |||
| Display Type | 19＂Active Matrix TFT-LCD | |||
| Display Active Area | 14.8＂(377mm)×11.9＂(301mm) | |||
| Suggested Resolution | 1280×1024@60Hz | |||
| Support Colors | 16.7M | |||
| Brightness(Typ.) | Pure LCD Panel | 250cd/m2 | ||
| With SAW Glass | 225cd/m2 | |||
| Response Time(Typ.) | 16ms | |||
| Viewing Angle | Horizontal(left/right):(85°/85°) | |||
| (Typ.at CR＞10)) | ||||
| Vertical(up/down):(80°/80°) | ||||
| Contrast Ratio(Typ.) | 1000:1 | |||
| Video Input | Analog RGB | |||
| Frequency(H/V) | 30～80KHz / 60～75Hz | |||
| Power Supply | Type: External brick | |||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||||
| Environment | Operation Temp: | 0～50°C | ||
| Storage Temp: | -20～60°C | |||
| Operation RH: | 20%～80% | |||
| Storage RH: | 10%～90% | |||
| MTBF | 50,000 Hours | |||
| LED Back light Life(Typ.) | 50,000 Hours | |||
| Weight(N.W/G.W) | N.W :5.85Kg (Single) | |||
| Power Consumption | 15W Max. | |||
| Standby power consumption | 0.95W | |||
| Mount Interface | 1)VESA 75mm and 100mm | |||
| 2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied) | ||||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Touch screen Type | Keetouch 19" SAW Touch Mointor | |||
| Support System | WinXP,Win7,Win8,Linux | |||
| Touch System Interface | Having USB interface | |||
| Touch Response time | 16ms | |||
| Agency Approval | CCC,UL,FCC,CE,CB,RoHS | |||
| Regular Warranty | 1 year | |||
Infrared Touch Monitor Mechanical Dimensions

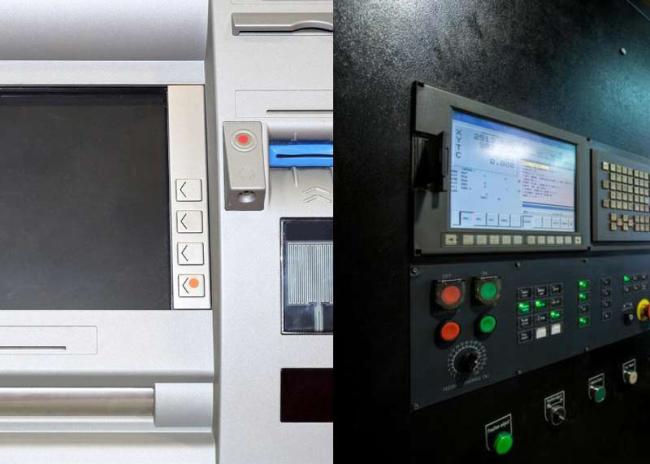

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the infrared touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the infrared touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the infrared touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
