10.4 Inch High Brightness Touch Monitor IP65 Water Proof Dust Proof
10.4 Inch Industrial High Brightness Touch Monitor With IP65 Water Proof
High Brightness Touch Monitor Main Features
- Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
- IP65 grade water-proof,dust-proof for front panel.
- Aluminum alloy shell, good mechanical properties,better performance of heat dissipation.
- Adopt industrial control HD LCD screen +LED backlight screen,highlight picture.
- Compatible with various industrial systems/application.
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0104U-CA4PH (P/N:KOT-104P-011) | |
| Series | OT | |
| Display Type | 4:3 Ratio 10.4" TFT-LCD | |
| Active Area | 211.1*158.4(mm) | |
| Monitor Dimensions (W*H*D) | 276.4*219.4*43.5(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | ≥1000cd/m2 |
| With Touch Monitor | ≥800cd/m2 | |
| Response Time (Typ.) | 16ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 75°/75° |
| Vertical(up/down) | 75°/75° | |
| Contrast Ratio (Typ.) | 900:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥ 30,000 Hours | |
| LED Back Light Life (Typ.) | ≥ 30,000 Hours | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤18W | |
| Mount Interface |
1.VESA 75mm 2.Mount bracket, horizontal or vertical mount
|
|
| Weight(N.W/G.W) | 2.2Kg(1pcs) /6.4Kg(2pcs in one package) | |
| Package dimensions | 350*221*298(mm)(2pcs in one package) | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 10.4" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >80% |
| Support System |
Multi-Touch : WIN7,WIN8,WIN10 Single Touch : XP |
| Active Area | 213*160.2(mm) |
| Thickness | 3.75±0.2mm |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |

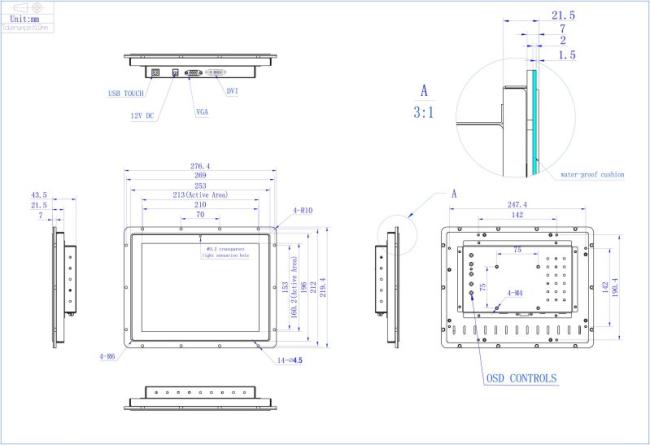

High Brightness Touch Monitor Mechanical Dimensions
Applications
1. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
2. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
3. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
4. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops.
FAQ
1. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
2. What package do you provide?
Our package usually is carton.
3. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
4. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
