1280×800 Industrial Touchscreen Computer , 21.5 Inch AIO Touchscreen PC
PCAP Touch Industrial Touchscreen Computer 21.5 Inch AIO Touch Computer
Industrial Touchscreen Computer Main Features
- Integrated with KeeTouch PCAP touch panel for the ultimate in image quality
- High-quality panel with high brightness, contrast ratio, and broad viewing angle
- Zero bezel All-in-one touchscreen computer, unique and nicely appearance
- High configurations like i3,i5, and i7 processors
- Multiple I/O interfaces to make it operate easily
- The industrial touchscreen computer's available sizes are from 7inch to 43inch
Industrial Touchscreen Computer Specifications
| KTP-215M-008 | ||
| Display | Screen | 21.5 inch |
| Resolution | 1920 x 1080 | |
| According to the proportion | 16:09 | |
| Brightness | 212nit(Typ.)/170(Min.) | |
| Contrast | 3000:1(Typ.)/2000:1(Min.) | |
| Response Time | 20(Typ.)/ 25(Max.) | |
| View angle | 89/89/89/89(Typ.)/80/80/80/80(Min.)(CR≥10) | |
| Active Display Area | 476(H) x 268(V)mm | |
| PC Configuration | CPU | 4 core Cortex-A17 |
| Run | 2GB | |
| Storage | 16G | |
| Touch Screen | Touch Method | Capacitive Touch |
| Touch Surface Hardness | 6H | |
| Touch Screen Transparency | 85% | |
| I/O interface | 1-COM, 1-Type_c, 2-USB, 1-RJ45, 1-HDMI, 1-DC 12V, 1-Audio, 1-SIM, 1-TF | |
| Other parameters | Cooling System | Fanless |
| Enclosure Material | Metal | |
| Weight(N.W/G.W) | 5.5Kg(1pcs) / 12.3Kg(2pcs in one package) | |
| Package dimensions | 605*395*200(mm)(2pcs in one package) | |
| Waterproof Rating | IP65 ( Only for front panel ) | |
| Power Consumption | ≤30W | |
| Working Temperature | 0 ~ 50 °C | |
| Storage Temperature | -20~60°C | |
| Stroage Humidity | 20%~80% | |
| Stroage Humidity | 10%~90% | |
| Product Size | 515.8*307.3*52 (mm) | |
| Warranty | 1 year | |
| Certification | CCC, ETL, FCC, CE, CB, RoHS | |
The Industrial Touchscreen Computer Mechanical Dimensions

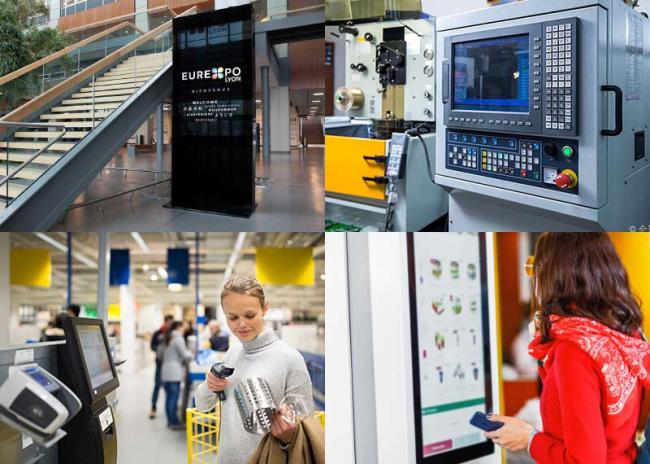

Applications
- Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
- Business Organizations: supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, and pharmacies.
- Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; · Non-profit Organizations: Telecommunications, post offices, hospitals, schools;
- Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
- Entertainment: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, and golf courses.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What is your warranty period for industrial touchscreen computers?
The regular warranty is 12 months. A 2-3 years warranty can be an option.
4. What kind of certificates do we have for global markets?
CCC, ISO9001, ISO14001, ETL, FCC, CE, CB, RoHS certificate.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit cards, Boleto, e-Checking, and Alipay. ( L/C can be negotiable. )
6. What is your core advantage?
KeeTouch's core advantage is Customization, OEM/ODM are available.
