Dust Proof SAW 22 Inch Touch Screen Monitor With USB RS232 Interface
Dust Proof 22 Inch SAW Touch Monitor With USB And RS232 Touch Interface
SAW Touch Monitor Description:
KeeTouch SAW touch panel delivers accurate touch and fast response. The high quality and dust-proof SAW touch monitor is durable in harsh environment. There are multiple mounting options include VESA mount, horizontal or vertical brackets mount. It's compatible with operating system like XP, WIN7, WIN8, WIN10, Linux, Android. Other sizes are available for 7" to 43".
SAW Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0220US-SA6BP (P/N:KOT-220P-014) | |
| Series | OT | |
| Display Type | 16:10 Ratio 22" TFT-LCD | |
| Active Area | 376.32*301.06 (mm) | |
| Monitor Dimensions (W*H*D) | 473.8 mm×296.1 mm | |
| Suggested Resolution | 1680*1050@ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Video Input connector | Mini D-Sub 15-pin VGA and DVI-D | |
| Frequency (H/V) | 30 -80KHz/ 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 7.4Kg(1pcs)/20.8Kg(2pcs in one package) | |
| Package dimensions | 635*190*435(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Touch Screen Type | 22" Surface acoustic wave touch screen(6mm) | |
| Touch input | USB/RS232 | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |

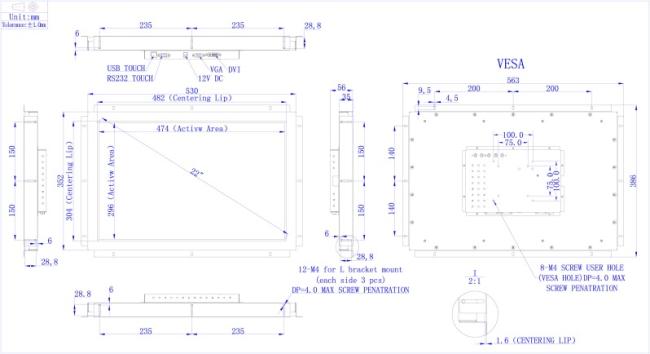

SAW Touch Monitor Mechanical Dimensions
Applications

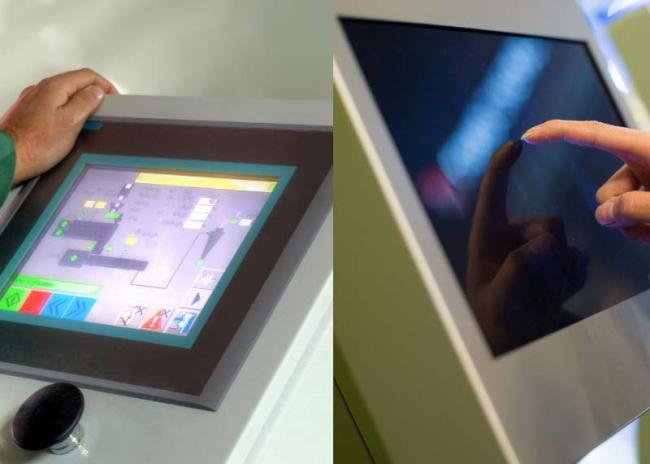

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Our Advantages:
- High-tech and innovative enterprise
- More than 175+ design patents
- Completely and strictly quality control system
- 30,000+ manufacturing capacity per year
- Efficient Warehousing and Logistics
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What is your delivery time for SAW touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
