10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
10.1 inch High Brightness Monitor with capacitive touch screens for outdoor
High Brightness Touch Monitor Main Features
- Anti-glare, anti-vandal high brightness touch monitor
- PCAP multi touch screen, high quality touch experience
- High brightness:1000 - 2000 cd/m2 optional
- Pure flat designed high brightness touch monitor, IP65 frontside waterproof
- Interface: DVI + VGA interfaces,
- Touch Input: USB
- Support OS: XP,WIN7,WIN8,WIN10
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0101U-CA4PHB (P/N:KOT-101P-001) | |
| Series | OT | |
| Display Type | 16:10 Ratio 10.1" TFT-LCD,LED backlight | |
| Active Area | 216.96*135.6(mm) | |
| Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |
| Suggested Resolution | 1280*800 WXGA | |
| Support Colors | 16.2M | |
|
Brightness (Typ.) |
Pure LCD Panel | ≥1200cd/m2 |
| With Touch Monitor | ≥1020cd/m2 | |
| Response Time (Typ.) | 16ms | |
|
Viewing Angle(Typ.at CR＞10)) |
Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 85°/85° | |
| Contrast Ratio (Typ.) | 800:1 | |
| Video Input | VGA/DVI/HDMI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Heat Dissipation | Fan Cooling | |
|
Power Supply |
Type: External brick Display voltage: DC 12V±5% 3.3A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
|
Environment |
Operating Temp. | -20～65°C |
| Operating RH | 60℃, RH 90% | |
| Storage Temp. | -25～70°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥ 50,000 Hours | |
| LED Back Light Life (Typ.) | ≥ 50,000 Hours | |
| Power Consumption | Standby Power: ≤15W / Operating Power: ≤18W | |
| Mount Interface |
1. VESA 75mm 2. Mount bracket, horizontal or vertical mount |
|
| Weight(N.W/G.W) | 2.1Kg(1pcs) /7.5Kg(2pcs in one package) | |
| Package dimensions | 415*255*295mm(2pcs in one package) | |
|
OSD Control |
Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 10.1" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >85% |
| Support System |
Multi-Touch : WIN7,WIN8,WIN10 Si ngle Touch : XP |
| Active Area | 219.2*137.8(mm) |
| Thickness | 3.75±0.2mm |
| Touch Test | ≥ 50,000,000 次 |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

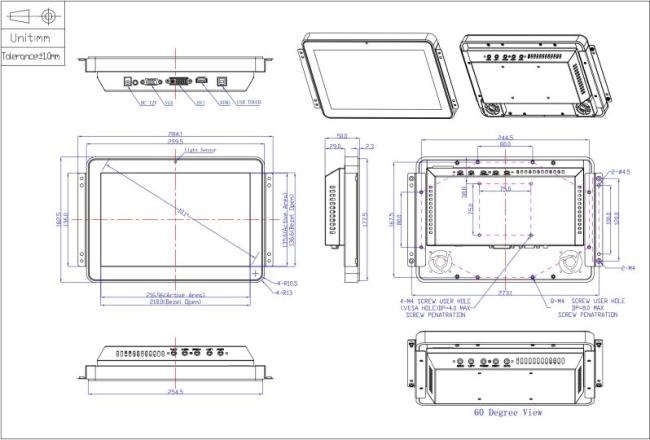

High Brightness Touch Monitor Mechanical Dimensions

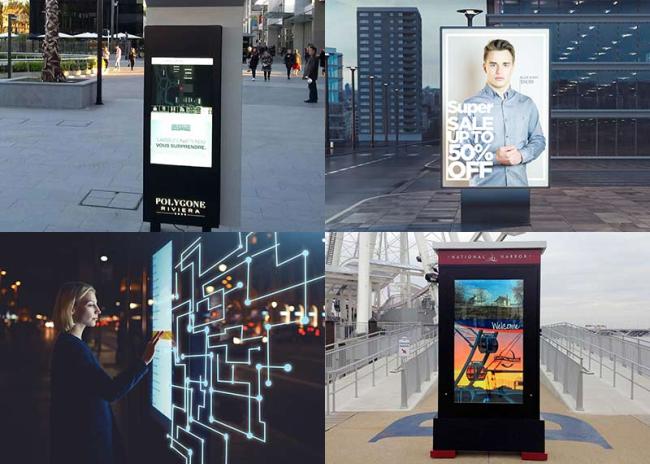

Applications
1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.
2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
3. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
