800×600 Resolution SAW Touch Monitor 10.4 Inch Open Frame With Multiple Interfaces
10.4 Inch SAW Touch Monitor 800×600 Resolution Open Frame Screen
SAW Touch Monitor Description:
KeeTouch SAW touch monitor applied with scratch resistance pure touch glass to deliver a fast and accurate touch experience. It has a long life working span with more than 50 million touches in a single point. Multiple interfaces include VGA, DVI, HDMI. Custom size for OEM available.
SAW Touch Monitor Specifications
| Item | Contents |
| Model No. | KOT-0104U-SA4BP(P/N:KOT-104P-005)104P-005 |
| Series | OT,Dust-proof |
| Display Type | 4:3Ratio 10.4＂Active matrix TFT-LCD |
| Active Area | 211.2×158.4(mm) |
| Monitor Dimensions | Width: 257mm Height: 199mm Depth: 45.5mm |
| Suggested Resolution | 800×600 (SVGA) |
| Support Colors | 16.2M |
| Brightness(Typ.) | Pure LCD Panel 300cd/m2 With SAW Touch panel 270cd/m2 |
| Response Time(Typ.) | 30ms |
| Viewing Angle (Typ.at CR＞10)) | Horizontal(left/right) 75°/75° Vertical(up/down) 50°/60° |
| Contrast Ratio(Typ.) | 500:1 |
| Video Input | VGA,DVI,HDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. 0～50°C Storage Temp. -20～60°C Operating RH: 20%～80% Storage RH: 10%～90% |
| MTBF | 50,000 Hours |
| LED Back light Life(Typ.) | 50,000 Hours |
| Weight (N.W/G.W) | 2.25Kg(1pcs)/6.55Kg(2pcs in one package)(Approx.) |
| Out package dimensions | 330×220×280(mm)(2 pcs in one package) |
| Power Consumption | 7.15W Max. |
| Standby power consumption | 1.12W |
| Mount Interface | Mount bracket, horizontal or vertical and VESA mount (Standard mount brackets are supplied) |
| OSD Control | Buttons AUTO,+,POWER,-,MENU Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Touch screen Type | 10.4” SAW 4mm thickness of touch screen sensor |
| Touch System Interface | Having USB interface |
| Touch Response time | USB: 8.4ms |
| Agency Approval | CCC, ETL, FCC, CE, RoHS |
| Regular Warranty | 1 year |

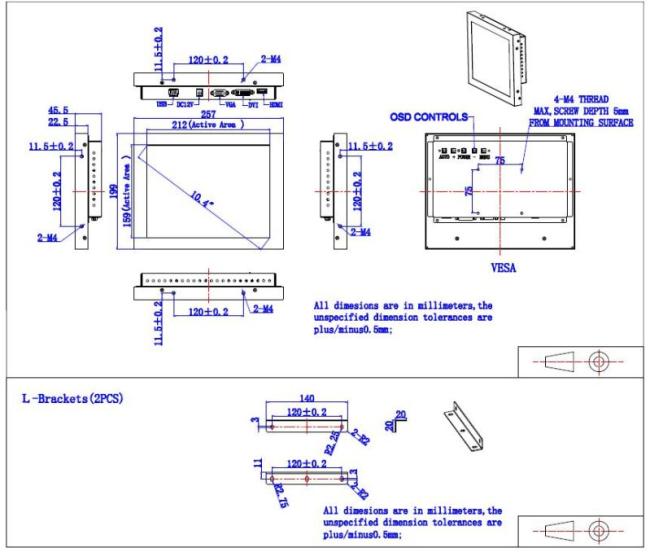

SAW Touch Monitor Mechanical Dimensions
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Our Advantages:
- 5 production lines including 3 touch screen lines,1 touch monitor line and 1 hardware accessories line.
- Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications.
- Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc.
- Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the SAW touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
6. What is your delivery time for the SAW touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
