15" Capacitive Touchscreen Monitor , High Brightness LED Display For Vending Machines
15 Inch High Brightness Led Display With Capacitive Touchscreen For Vending Machines
High Brightness Touch Monitor Main Features
1. Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
2. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
3. Compatible with various industrial systems/application.
4. Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
5. CCC, UL, FCC, CE, CB, RoHS certificate.
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0150U-CA4PH(KOT-150P-014-02) | |
| Series | OT | |
| Display Type | 5 : 4 Ratio 15" TFT-LCD | |
| Active Area | 304.1*228.1 (mm) | |
| Monitor Dimensions (W*H*D) | 353.5*284.5*65.3 (mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 1000cd/m2 |
| With Touch Monitor | 830cd/m2 | |
| Response Time (Typ.) | 21ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1800:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 40～90KHz / 55～70Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | -20～50°C |
| Operating RH | 20%～90% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | 30,000 Hours | |
| LED Back Light Life (Typ.) | 30,000 Hours | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Weight(N.W/G.W) | 4.95Kg(1pcs) | |
| Package dimensions | 495*250*425(mm)(2pcs in one package) | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Touch screen Type | 15”Projected Capacitive Touchscreen | |
| Touch System Interface | USB(or Serial port,one point) | |
| Support System | 10 points in win7 | |
| Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

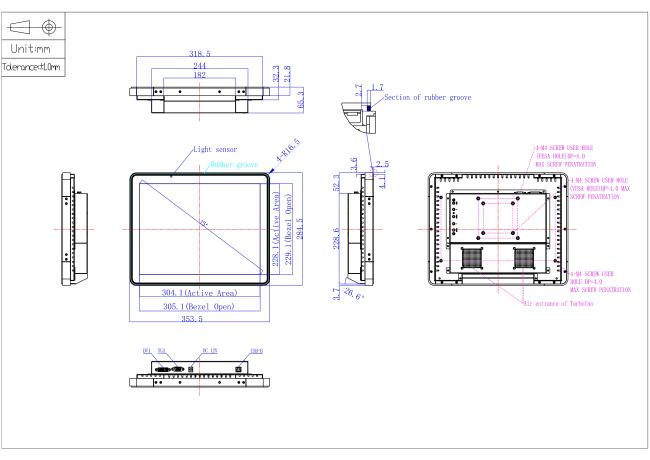

High Brightness Touch Monitor Mechanical Dimensions

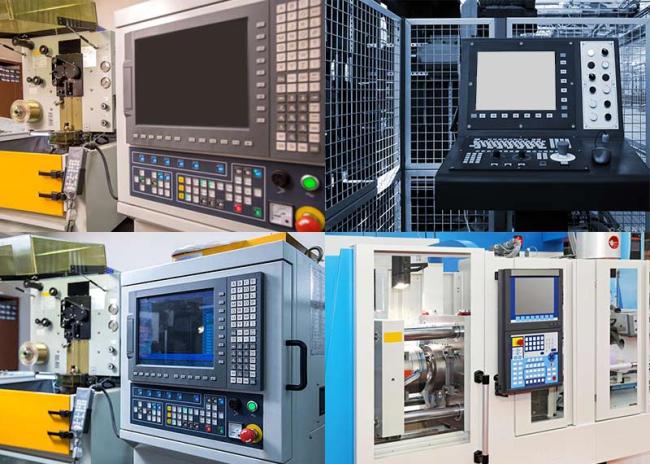

Applications
1. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
2. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
3. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
4. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ?
Our minimum order quantity is 1pc only.
3. Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
