32 Inch AIO Touch Screen Industrial Panel PC 1000cd/M2 Brightness
32 Inch Industrial Touchscreen Computer High Brightness PC
Industrial Touchscreen Computer Main Features
- Industrial grade LCD panel, high PC configurations
- Different sizes from 7inch to 55inch are optional
- Configurations can be customized per customers’ requirements
- A series of I/O interfaces support various third-party peripherals
- Industrial touch screen computer supports embedded,wall-mounted, rack-mounted, desktop, VESA mount
Industrial Touchscreen Computer Specifications
| Complete Machine | ||
| Model No. | KOT-0315U-CA4P (P/N:KTP-320M-002-04) | |
| Series | All in one | |
| Display Type | 16:9 Ratio 31.5" TFT-LCD | |
| Active Area | 698.4*392.85 (mm) | |
| Monitor Dimensions (W*H*D) | 780*466*83 (mm) | |
| Suggested Resolution | 1920x1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 1200cd/m2 |
| With Touch Monitor | 1000cd/m2 | |
| Response Time (Typ.) | 8ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 3000:1 | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 24V/ 5A Computer voltage: DC 12V/ 5A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | -10～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥50,000 Hours | |
| LED Back Light Life (Typ.) | ≥50,000 Hours | |
| Mount Interface | Mount bracket, horizontal or vertical mount | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 31.5" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤14ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 705.00*397.85(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
The Industrial Touchscreen Computer Mechanical Dimensions

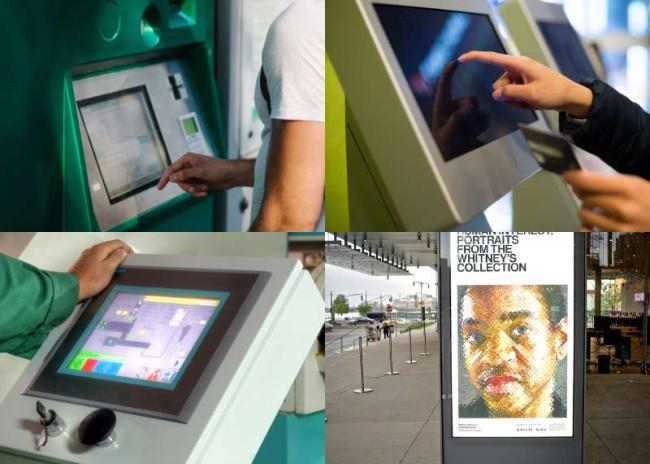

Applications
Industrial touch computers can be widely seen in the industries like retail, gaming, kiosk, self-service, finance, transit, conference, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart homes, entertainment, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ?
Our minimum order quantity is 1pc only.
3. What package do you provide?
Our package usually is a carton.
4. What is your payment method?
We can accept T/T, Western Union, and Paypal. ( L/C can be negotiable. )
5. What are the shipping ways?
We will ship the goods according to the customer’s requirements. For sample, normally by FedEx, DHL, UPS, and TNT. For bulk orders, by air or by sea.
