1 Touch Points LCD Panel Touch Screen 15.1 Inch For ATM Machine
Touch Screen Sensor 15.1 Inch For ATM Machine High Optical Clarity
Touch Screen Sensor Main Features
Acoustic wave touch screens use transducers mounted at the edge of a glass overlay to emit ultrasonic sound waves along two sides. These waves are reflected across the surface of the glass and received by sensors.
A finger or other soft tipped stylus absorbs some of the acoustic energy and the controller measures the amplitude change of the wave to determine touch location.
1) Good optical clarity
2) Z-axis capability
3) Durable glass front
SAW Touch Screen Specifications
| Complete Machine | ||
| Model No. | KAL-0151-6BSGW-ALC3 | |
| Housing | Aluminum | |
| Outline Dimensions | 350±1.5mm(L)×274±1.5mm(W)×8.7±0.5mm(H) | |
| Active Area | 306±1mm(L)×230±1mm(W) | |
| Aspect Ratio | 4:3 | |
| Size | 15.1 inch | |
| Touch Activation Force | No minimum touch pressure required | |
| Number of touch points | 1 touch points | |
| Response Time | ≤32ms | |
| Light Transmission | 100% without glass | |
| Operate System Support | Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android | |
| Temperature | operating:-20oC ~ 70o C | |
| storage:-40oC ~ 85oC | ||
| Humidity | operating:10% ~ 90% | |
| storage: 10% ~ 90% | ||
| Certifications | FCC , CE, RoHS | |
| Operating Environment | Indoor and outdoor | |
| Applicative Screen | LED,LCD,PDP etc. | |
Applications

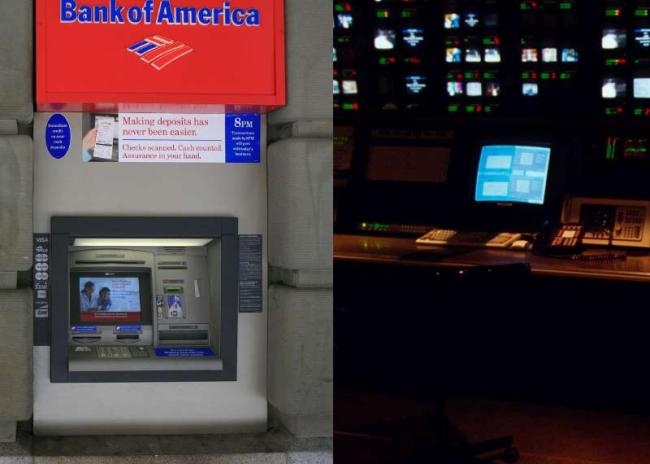

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer or trading company?
KeeTouch is a professional Touch Screen Sensor manufacturer for over 16 years, located in Shenzhen, China.
2. What is your delivery method?
DHL , UPS , FEDEX ,TNT you can choose.
3. What is the lead time of the Touch Screen Sensor?
Samples in stock will be sent within 3 days after payment,7-15 for mass production.
4. What is your Payment methods?
T/T, Paypal and Western union etc.
5. How long is the warranty period for the Touch Screen Sensor?
Generally the warranty period is 12 months.
6. What is the MOQ for Touch Screen Sensor?
We don't have the limit for the MOQ. 1 pc also available.
Why choose us ?
Factory you can trust
KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001.
In 2012,it was awarded the high and new technology enterprise of china and recognized by the Chinese government.
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
Strong and professinal R&D team
There are 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
