Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount
Anti-Glare 21.5 Inch PCAP Touch Screen Monitors With Privacy Films VESA Mount
PCAP Touch Monitor Description
Our PCAP Touch Screen Monitors are with features resolution 1920*1080, brightness 250cd/m2, high contrast ratio, and a wide operating temperature. Models are perfect use in industrial environments. They can be used with gloved hands and support 10 points accurate touch. VESA mount, brackets mount, built-in installation are available for your machine.
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0215U-CA4P (P/N:KOT-215P-011) | |
| Series | OT | |
| Display Type | 16:9 Ratio 21.5" TFT-LCD | |
| Active Area | 478*270(mm) | |
| Monitor Dimensions (W*H*D) | 516*311*40(mm) | |
| Suggested Resolution | 1920x1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGADVIHDMI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 5.6Kg(1pcs)/7.7Kg(1pcs in one package) | |
| Package dimensions | 610*410*145(mm)(1pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 21.5" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 477.6*269(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

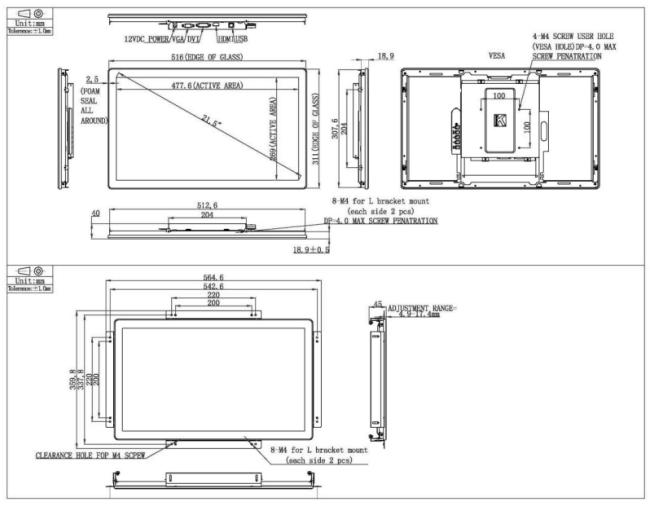

PCAP Touch Monitor Mechanical Dimensions

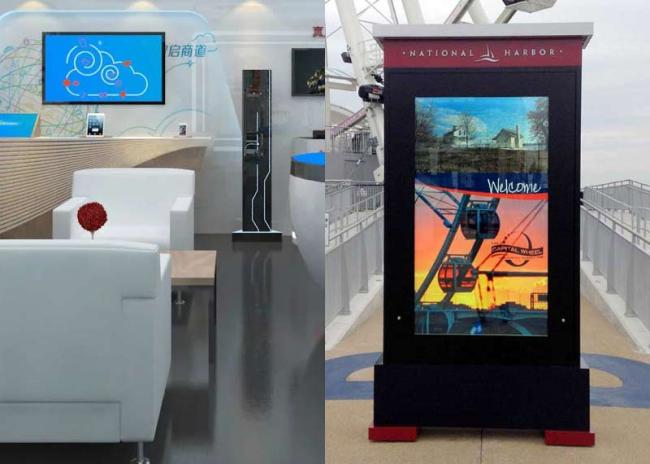

Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
2. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
