Capacitive 10 Points PCAP Touch Monitor 27 Inch For Gaming Kiosks
27 Inch Capacitive 10 Points Touch Screen Monitor Touch For Gaming Kiosks
PCAP Touch Monitor Main Features
1. Dust-proof and anti-vandal PCAP touch monitor with full viewing angle
2. Pure flat designed PCAP touch monitor with IP65 front side waterproof
3. VGA/DVI/DHMI interfaces, USB for touch input
4. Multiple mounting options include VESA mount, horizontal vertical brackets mount
5. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
6. Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
7. Compatible with various industrial systems/application.
8. CCC, ETL, FCC, CE, CB, RoHS certificate.
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0270U-CA2P (P/N:KOT-270P-006) | |
| Series | OT | |
| Display Type | 16:9 Ratio 27" TFT-LCD,LED backlight | |
| Active Area | 599.3*337.8(mm) | |
| Monitor Dimensions (W*H*D) | 655.9*394.4*48.5(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 250cd/m2 | |
| Response Time (Typ.) | 12ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 3000:1 | |
| Video Input | VGA/DVI/HDMI | |
| Frequency (H/V) | 30～80KHz / 50～75Hz | |
| Power Supply | Type: External brick | |
| Display voltage: DC 12V±5% | ||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤35W | |
| Mount Interface | 1.VESA 75mm and 100mm | |
| 2.Mount bracket, horizontal or vertical mount | ||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Touch Type | 27" Capacitive screen | |
| Touch input | USB | |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

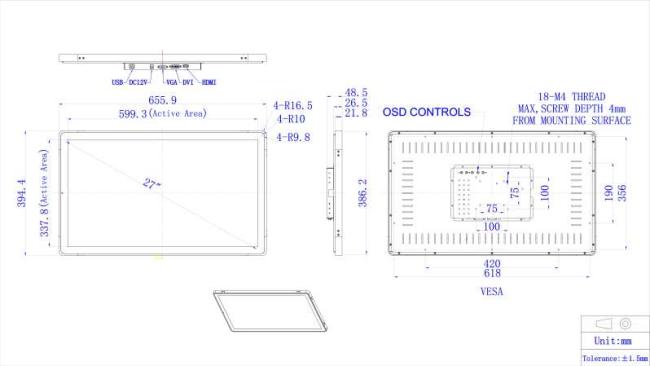

PCAP Touch Monitor Mechanical Dimensions

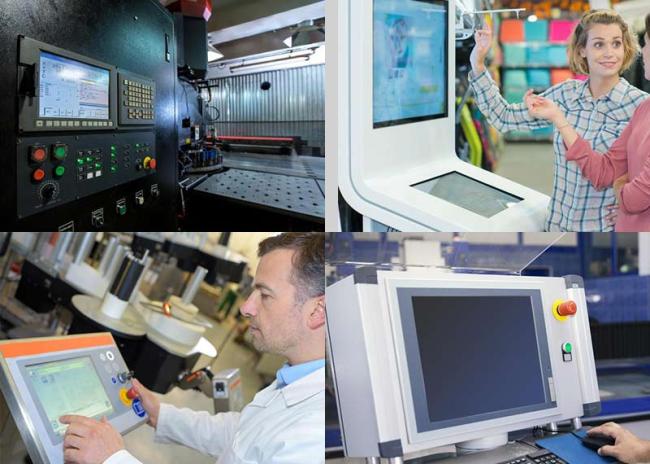

Applications
1. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
2. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
3. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
4. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
FAQ
1. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
2. What package do you provide?
Our package usually is carton.
3. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
4. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
