IP65 Waterproof Industrial 43 Inch Touch Screen Monitor With Tempered Glass
KeeTouch Industrial PCAP Touch Screen Monitors 43 Inch Tempered Glass Touch Screen
PCAP Touch Monitor Description
Our PCAP touch monitor is built into a modern stylish bezel with edge-to-edge glass. With a glass overlay covering the screen and a rugged bezel, it offers high durability and scratch-resistance, which is perfect for kiosk, vending machine and other public applications. They are against IP65 rating dust and water resistance and support VGA, DVI, HDMI interfaces, USB for touch.
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) | |
| Series | OT | |
| Display Type | 16:9 Ratio 43" TFT-LCD | |
| Active Area | 942.9*531.25 (mm) | |
| Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) | |
| Suggested Resolution | 1920x1080 @ 60Hz | |
| Support Colors | 16.7M | |
|
Brightness (Typ.) |
Pure LCD Panel | 380cd/m2 |
| With Touch Monitor | 320cd/m2 | |
| Response Time (Typ.) | 6.5 ms | |
|
Viewing Angle(Typ.at CR＞10)) |
Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 3000:1 | |
| Video Input | VGADVIHDMI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
|
Power Supply |
Type: External brick Display voltage: DC 24V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
|
Environment |
Operating Temp. | -10～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | 50,000 Hours | |
| LED Back Light Life (Typ.) | 50,000 Hours | |
|
OSD Control |
Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Touch Type | 43" Capacitive touch screens, antiglare and tempered type | |
| Touch input | USB | |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
| Regular Warranty | 1 year | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
PCAP Touch Monitor Mechanical Dimensions
Applications

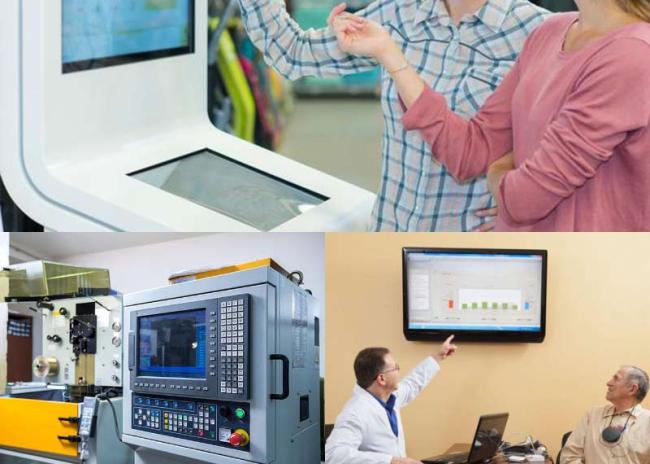

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
6. What package do you provide?
Our package usually is carton.
