23" Multi Points Antibacterial Touch Screen With VGA DVI Interfaces
23 Inch Antibacterial Touch Screen Monitor Antiglare Anti-Vandal IP65
Antibacterial Touch Screen Main Features
- Using ion-exchange process, permanent antibacterial
- Ag+ antibacterial, security, broad-spectrum and long-acting, no drug resistance
- With antibacterial function, the bacteria on the panel’s surface is reduced by 99.9%
- Multi-points Antibacterial Touch Screen, PCAP touch panel, high sensitive and fast-response
- High resolution, high contrast ratio Antibacterial Touch Screen, full viewing angle, perfect interactive experience
- Vandal-proof and dust-proof, IP65 surface waterproof
- VGA+DVI+HDMI interfaces,USB for touch
- Multiple mounting options, support system: XP,WIN7,WIN8,WIN10, Linux, Android
- Other sizes are available (15’’- 43’’)
Antibacterial Touch Screen Specifications
| Complete Machine | ||
| Model No. | KOT-0230U-CA5P (P/N:KOT-230P-802) | |
| Series | OT | |
| Display Type | 16:9 Ratio 23" TFT-LCD | |
| Active Area | 509.184*286.416(mm) | |
| Monitor Dimensions (W*H*D) | 569*348.2*47.2(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 | |
| Response Time (Typ.) | 14ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI/HDMI | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 7.7Kg(1pcs)/20.8Kg(2pcs in one package) | |
| Package dimensions | 650*435*195(mm)(2pcs in one package) | |
| Power Consumption | ≤19W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 23" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 513.80*291.00(mm) |
| Thickness | 5.3±0.35(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

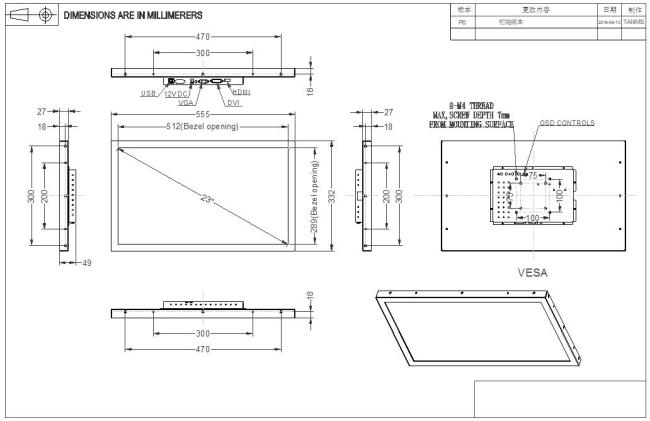

Antibacterial Touch Screen Mechanical Dimensions
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
