14 Inch PCAP IP65 Surface Waterproof Touch Monitor For Kiosks
14 Inch PCAP Touch Monitor IP65 Surface Waterproof For Kiosks
PCAP Touch Monitor Description
- With PCAP touch technology, support 10 points multi-touch
- Vandal proof, scratch resistant and IP65 surface waterproof PCAP touch monitor
- ≥30,000 hours MTBF, lasting touch, durable even in harsh environment
- High resolution PCAP touch monitor with high quality image
- VGA + DVI interfaces,USB for touch
- Multiple mounting options include VESA mount, horizontal and vertical brackets mount
- Operation system: XP, WIN7, WIN8
- Other sizes are available (7’’- 43’’)
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0140U-CA4P (P/N:KOT-140P-002) | |
| Series | OT | |
| Display Type | 16:9 Ratio 14" TFT-LCD | |
| Active Area | 311*176(mm) | |
| Monitor Dimensions (W*H*D) | 340*214.84*36.9(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 200cd/m2 |
| With Touch Monitor | 170cd/m2 | |
| Response Time (Typ.) | 8ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 800:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
| Mount Interface | Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 14" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8 |
| Active Area | 309.31*173.99(mm) |
| Thickness | 4.3±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

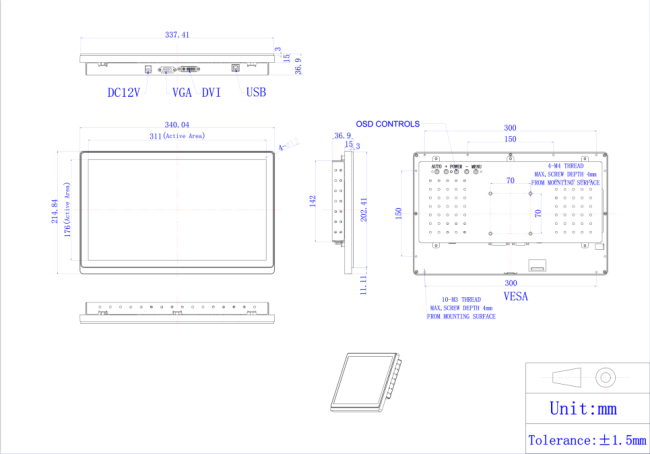

PCAP Touch Monitor Mechanical Dimensions
Our Advantages
- Comprehensive product lines including PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PCs, sheet metal cases.
- Monthly capacity is more than 30,000 pcs
-
Products you received are inspected by rigorous reliability testing, such as burn-in test, anti-vibration test, high low temperature test to ensure quality.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
