1000nit Brightness Touch Screen Computer PC Anti Vandal PCAP 17 Inch
1000nit Brightness Touch Screen Computer PC Anti Vandal PCAP 17 Inch
Industrial Touchscreen Computer Main Features
-
PCAP multi touch screen, high sensitive and fast response
-
High quality panel with high brightness, contrast ratio and broad viewing angle
-
Pure flat designed PCAP touch computer with IP65water proof function
-
Various configurations for your option, J1900, I3, I5 and I7
-
With a range of I/O ports, support a variety of third-party peripherals
-
Other sizes (7’’-43’’) can be offered or customized
Industrial Touchscreen Computer Specifications
| KTP-170M-005 | ||
| Display | Screen | 17 inch |
| Resolution | 1280×1024 | |
| According to the proportion | 5:4 | |
| Brightness | 1000nit | |
| Contrast | 1000:1(Typ.)/600:1(Min.) | |
| Response Time | 5ms | |
| View angle | 85/85/80/80(CR=10)/88/88/85/85(CR=5) | |
| Active Display Area | 337.920×270.336mm | |
| PC Configuration | CPU |
Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max Intel® 9th Gen Supports 4 core & 6 core CPU (TDP: 95W), 8 core CPU, only support CPU TDP up to 35W Max. Intel® C246 Chipset |
| System Memory | Two 260-pin DDR4 2400/2666MHz SO-DIMM socket, supports up to 32GB Max | |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM | |
| The operating system | Windows7/Windows10/Andriod(optional) | |
| Touch Screen | Touch Method | Capacitive Touch |
| Touch Surface Hardness | 6H | |
| Touch Screen Transparency | 85% | |
| I/O interface | 1-VGA, 10-USB,4-LAN,2-HDMI, 1-DC,1-SWITCH, 1-PHONEIX TERMINAL | |
| Other parameters | Cooling System | Fan |
| Enclosure Material | Metal | |
| Waterproof Rating | IP65 ( Only for front panel ) | |
| Power Consumption | ≤30W | |
| Working Temperature | 0 ~ 50 °C | |
| Storage Temperature | -20~60°C | |
| Stroage Humidity | 20%~80% | |
| Stroage Humidity | 10%~90% | |
| Size | 418*355*98 (mm) | |
| Warranty | 1 year | |
| Certification | CCC, ETL, FCC, CE, CB, RoHS | |
The Industrial Touchscreen Computer Mechanical Dimensions
Applications

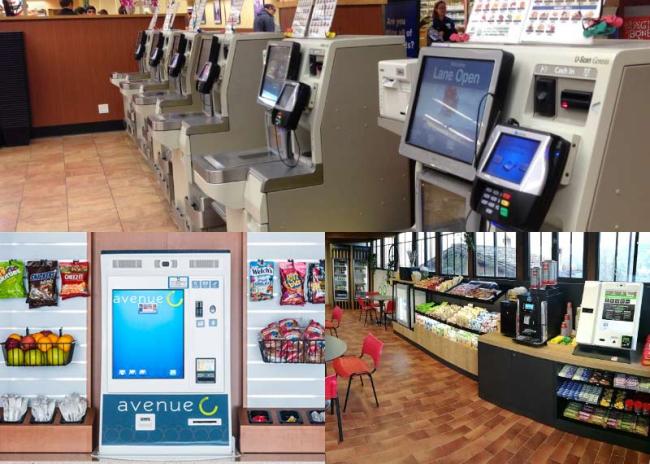

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the PCAP all-in-one touch computer?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP all-in-one touch computer?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP all-in-one touch computer according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
