1024x768 Resolution SAW 15 Inch Touch Monitor For ATMs
15 Inch SAW Touch Monitor 1024x768 Resolution For ATMs
SAW Touch Monitor Main Features:
This SAW touch monitor supports IP65 surface waterproof function, with stable and sensitive touch experience and high-definition visual enjoyment. The VGA, DVI and USB cables for use and it supports operating systems: XP, WIN7, WIN8, WIN10, Linux, Android. Multiple mounting options are available, including VESA mount, horizontal and vertical brackets mount. Per your requirements, other sizes (7’’-43’’) can be offered and customized.
SAW Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0150US-SA6BW (P/N:KOT-150W-020) | |
| Series | OT | |
| Display Type | 4:3 Ratio 15" TFT-LCD | |
| Active Area | 304*228(mm) | |
| Monitor Dimensions (W*H*D) | 347*271*51(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.2M | |
| Brightness (Typ.) | Pure LCD Panel | 420cd/m2 |
| With Touch Monitor | 378cd/m2 | |
| Response Time (Typ.) | 16ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥50,000 Hours | |
| LED Back Light Life (Typ.) | ≥50,000 Hours | |
| Weight(N.W/G.W) | 3Kg(1pcs)/9Kg(2pcs in one package) | |
| Package dimensions | 422*177*351(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 15" Surface acoustic wave touch screen |
| Touch input | USB/RS232 |
| Response Time | ≤8ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 304*228(mm) |
| Thickness | 6±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
SAW Touch Monitor Mechanical Dimensions
Applications

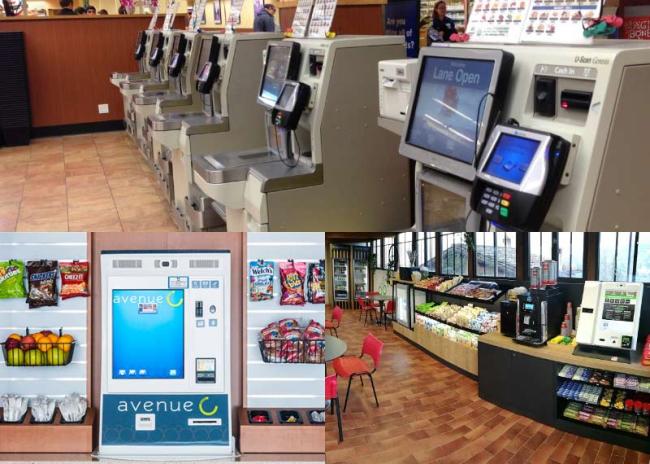

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
