4000:1 High Contrast Ratio 32 Inch Touch Monitor High Brightness
32 Inch High Brightness Touch Monitor 4000:1 High Contrast Ratio
High Brightness Touch Monitor Main Features
This high brightness touch monitor comes with anti-glare, vandal-proof and IP65 waterproof functions, full viewing angle, high contrast ratio, delivering high quality image with super touch Experience. It provides VGA & DVI & HDMI interfaces, also USB for touch input. With over 40 engineers, OEM and ODM services are offered. Besides, other sizes (7’’-43’’) are available.
High Brightness Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0320U-CA4PH (P/N:KOT-320P-025) | |
| Series | OT | |
| Display Type | 16:9 Ratio 32" TFT-LCD | |
| Active Area | 698.4*392.85 (mm) | |
| Monitor Dimensions (W*H*D) | 780*474*84.2(mm) | |
| Suggested Resolution | 1920x1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 1000cd/m2 , 1500cd/m2 , 2000cd/m2 |
| With Touch Monitor | 850cd/m2 , 1250cd/m2 , 1650cd/m2 | |
| Response Time (Typ.) | 6.5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 4000:1(Typ.)/3000:1(Min.) | |
| Video Input | VGADVIHDMI | |
| Frequency (H/V) | 60～73KHz / 47～63Hz | |
| Power Supply |
Type: External brick Display voltage: DC 24V/ 10A Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | 30,000 Hours | |
| LED Back Light Life (Typ.) | 30,000 Hours | |
| Power Consumption | ≤150W/190W/240W | |
| Mount Interface | Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | ≥6H |
| Light Transmittance | ≥83% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

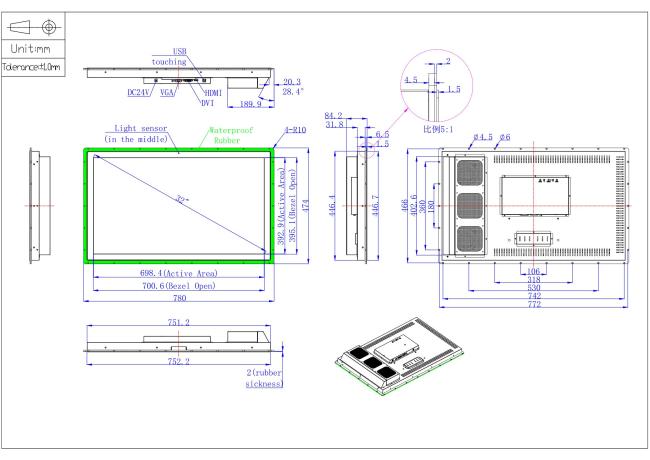

High Brightness Touch Monitor Mechanical Dimensions

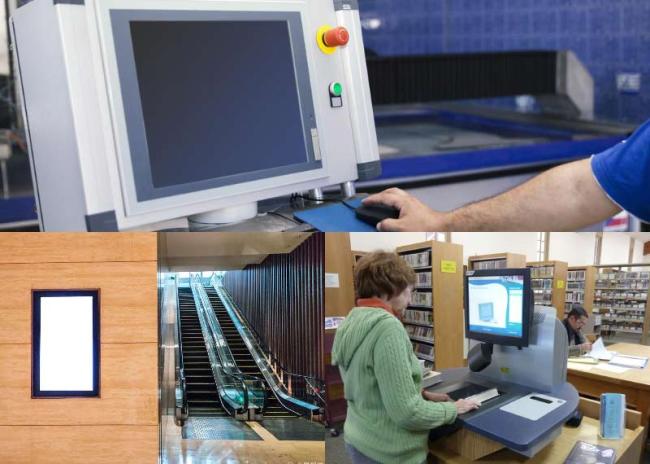

Products Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
