SAW 10.4 Inch VGA Touch Monitor For Smart Lockers
10.4 Inch SAW Touch Monitor VGA Interface For Smart Lockers
Description of SAW Touch Monitor
SAW touch monitor uses ultrasonic waves to detect touch input. The product is highly durable and can withstand harsh environments. It also has good clarity and image quality, making them ideal for use in various applications.
SAW Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0104U-SA4BP (P/N:KOT-104P-002) | |
| Series | OT | |
| Display Type | 4:3 Ratio 10.4" TFT-LCD | |
| Active Area | 211.2*158.4(mm) | |
| Monitor Dimensions (W*H*D) | 257*199*45.5(mm) | |
| Suggested Resolution | 800*600 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 |
| With Touch Monitor | 270cd/m2 | |
| Response Time (Typ.) | 20ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 75°/75° |
| Vertical(up/down) | 50°/60° | |
| Contrast Ratio (Typ.) | 500:1 | |
| Video Input | VGA | |
| Frequency (H/V) | 37.9～46.9KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Power Consumption | Standby Power: ≤1W / Operating Power: ≤8W | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 10.4" Surface acoustic wave touch screen |
| Touch input | USB |
| Response Time | ≤8ms |
| Support System | XP,WIN7,WIN8,WIN10 |
| Active Area | 212*159(mm) |
| Thickness | 4.0±0.1(mm) |

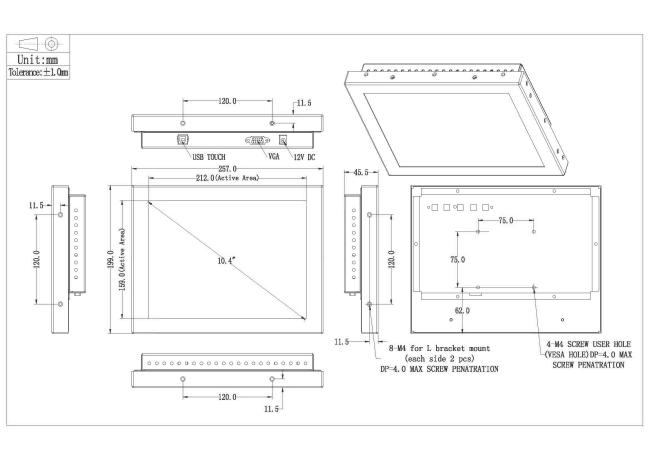

SAW Touch Monitor Mechanical Dimensions

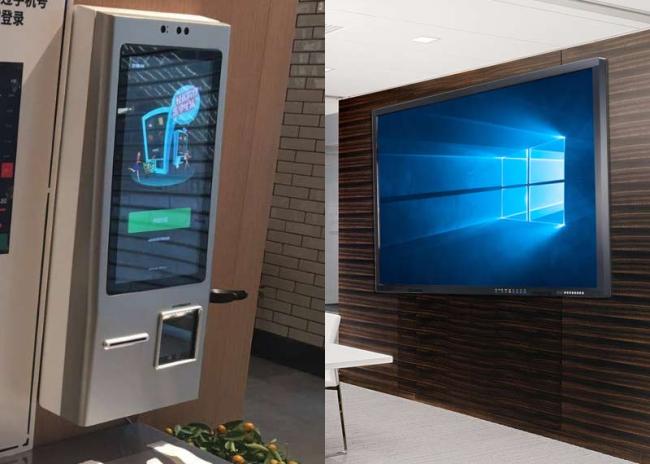

touch screen wall monitor Applications
SAW Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Feature of PCAP Touch Monitor
High image clarity: big touch screen monitor can provide excellent image clarity because there is no touch overlay layer on the screen surface.
Resistance to external factors: lcd monitor touch screen are scratch-resistant and can function normally even when exposed to extreme temperatures or high humidity.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the SAW Touch Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the open frame display?
We will do utmost to support you with the competitive price, also good service will be offered.
