IP65 Waterproof 15'' IR Touch Monitor Dust Proof And Vandal Proof
15'' IR Touch Monitor IP65 Waterproof 4:3 Ratio Display
Description of IR Touch Monitor
This ir touch screen panel comes with main features as below: 4:3 ratio display type, 1024*768 resolution, 1000:1 high contrast ratio, IP65 waterproof, dust-proof and vandal-proof along with wide viewing angle. This industrial touch monitor has high-quality image. With over 40 professional R&D engineers, we support customized service. In addition, other sizes can be for your option (7’’- 43’’).
Infrared Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0150U-IR3W (P/N:KOT-150W-018) | |
| Series | OT | |
| Display Type | 4:3 Ratio 15" TFT-LCD | |
| Active Area | 304.128*228.096(mm) | |
| Monitor Dimensions (W*H*D) | 351*275*55(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.2M | |
| Response Time (Typ.) | 16ms | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥50,000 Hours | |
| LED Back Light Life (Typ.) | ≥50,000 Hours | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 15" Infrared touch screen |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8 |
| Active Area | 306*230(mm) |
| Thickness | 9±1(mm) |
| Touch Test | 50,000,000 times |
| Input Voltage | 5V |
Infrared Touch Monitor Mechanical Dimensions

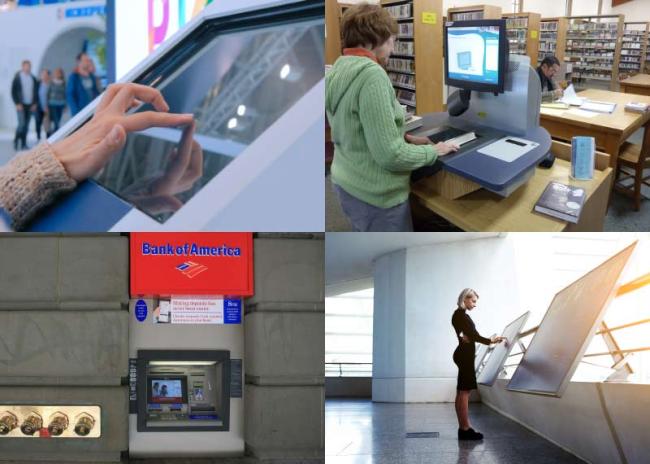

Infrared touch monitor commercial Applications
- Retail
- Gaming
- Kiosk
- self-service
- Finance
- Transit
- Conference
- Education
- Healthcare
- public service
- e-commerce
- Hotels
- restaurants
Advantages of Best infrared touch monitor
1. High durability: Infrared touch monitor for gaming are designed to withstand heavy usage and can handle millions of touch inputs. They are resistant to scratches, dust, and water, making them ideal for use in high-traffic areas.
2. High accuracy: Infrared touch screen monitor offer a high level of accuracy when it comes to touch input detection. This makes them suitable for applications that require precise touch inputs, such as drawing and design software.
3. Multi-touch support: Infrared touch monitor for education can detect multiple touch inputs simultaneously, allowing for multi-touch gestures such as pinch-to-zoom and two-finger scrolling.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the IR Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the IR Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
