10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers
10.4 Inch SAW Touch Monitor 500:1 Contrast Ratio For Smart Lockers
Description of Industrial SAW Touch Screen Monitor
This product comes with SAW touchscreen technology, fast response, free of drift and accurate touch. It is industrial grade SAW touch Monitor with dust-proof function. VGA, DVI and HDMI interfaces and USB port are provided for use. Besides, OEM and ODM services are welcomed to meet your individual requirements. Support system: XP,WIN7,WIN8 and WIN10.
SAW Touch Monitor Specifications
| Item | Contents |
| Model No. | KOT-0104U-SA4BP(P/N:KOT-104P-005)104P-005 |
| Series | OT,Dust-proof |
| Display Type | 4:3Ratio 10.4＂Active matrix TFT-LCD |
| Active Area | 211.2×158.4(mm) |
| Monitor Dimensions | Width: 257mm Height: 199mm Depth: 45.5mm |
| Suggested Resolution | 800×600 (SVGA) |
| Support Colors | 16.2M |
| Response Time(Typ.) | 30ms |
| Contrast Ratio(Typ.) | 500:1 |
| Video Input | VGA,DVI,HDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz |
| MTBF | 50,000 Hours |
| LED Back light Life(Typ.) | 50,000 Hours |
| Weight (N.W/G.W) | 2.25Kg(1pcs)/6.55Kg(2pcs in one package)(Approx.) |
| Out package dimensions | 330×220×280(mm)(2 pcs in one package) |
| Power Consumption | 7.15W Max. |
| Standby power consumption | 1.12W |
| Mount Interface | Mount bracket, horizontal or vertical and VESA mount (Standard mount brackets are supplied) |
| OSD Control | Buttons AUTO,+,POWER,-,MENU Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Touch screen Type | 10.4” SAW 4mm thickness of touch screen sensor |
| Touch System Interface | Having USB interface |
| Touch Response time | USB: 8.4ms |
| Agency Approval | CCC, ETL, FCC, CE, RoHS |
| Regular Warranty | 1 year |
SAW Touch Screen Technology Mechanical Dimensions

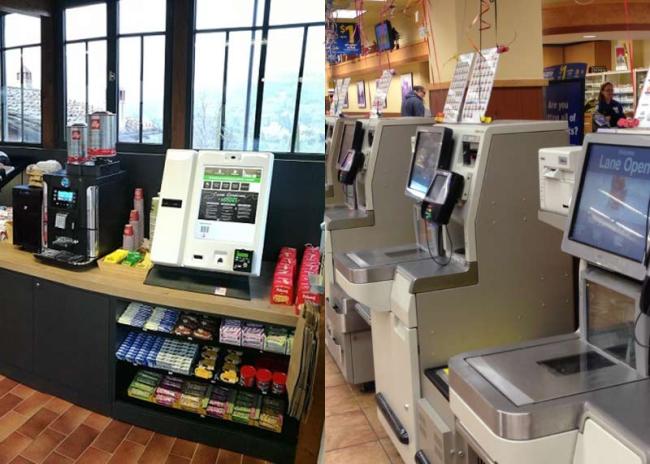

Touch Screen Monitor Applications
Waterproof SAW Touch Screen Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ
1. Can you produce the SAW Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
