1920x1080 Resolution 21.5 Inch High Brightness Touch Monitor IP65 Waterproof
21.5 Inch High Brightness Touch Monitor 1920x1080 Resolution IP65 Waterproof
Description of High Brightness Touch Monitor
This 21.5 inch high brightness touch monitor comes with Projected Capacitive touch technology with high contrast ratio, high resolution and full viewing angle. It is an industrial grade high brightness touch monitor, durable and fashionable. According to the customer’s requirements, with our professional R&D engineers, customized services can be offered. What’s more, other sizes (7’’-43’’) can be for your option.
High Brightness Touch Monitor Specification
| Complete Machine | ||
| Model No. | KOT-0215U-CA4PH (P/N:KOT-215P-028) | |
| Series | OT | |
| Display Type | 16:9 Ratio 21.5" TFT-LCD | |
| Active Area | 477.6*269.6(mm) | |
| Monitor Dimensions (W*H*D) | 535.1*327.1*56.4(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 1500cd/m2 |
| With Touch Monitor | 1245cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI/HDMI | |
| Frequency (H/V) | 40～90KHz / 50～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

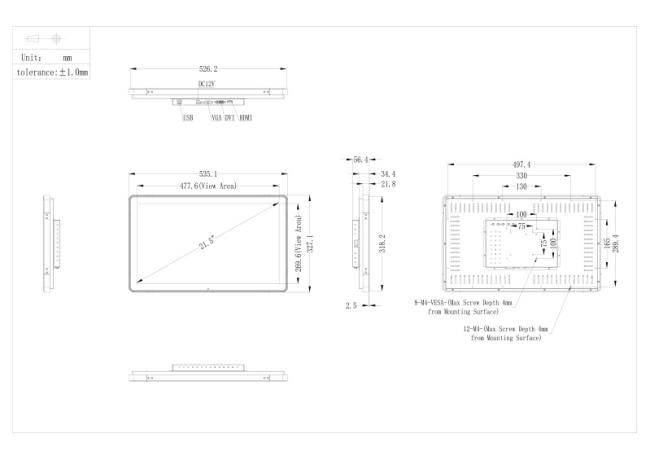

High Brightness Touch Monitor Mechanical Dimensions
Applications
High Brightness Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ:
1. Can you produce the high brightness touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the high brightness touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
